2025年2月17日27 - 136 t/h
Capacity
35 - 391 mm
Max Feeding Size
Highlights
High Crushing Efficiency
Optimized design ensures high crushing efficiency, capable of processing larger feed sizes, enhancing production capacity.
Superior Particle Shape
Unique crushing technology delivers high-quality product shape, reducing needle-like and flaky materials, ideal for high-standard aggregate production.
Robust and Durable
Constructed with high-quality materials, the machine is designed for durability and wear resistance, ensuring reliable performance in harsh environments and reducing downtime.
Easy Maintenance
User-friendly design facilitates maintenance and repairs, extending the equipment's lifespan and minimizing downtime to improve overall productivity.
Working Principle
1
Feeding Process
Material is fed through a top-opening hopper into the crushing chamber.
2
Primary Crushing
The material first undergoes initial crushing by the moving cone against the stationary cone.
3
Secondary Crushing
Further crushing occurs as the material moves downward and interacts with subsequent layers of cones, ensuring finer particle sizes.
4
Adjustment Mechanism
The gap between the moving and stationary cones can be adjusted to control the final product size.
5
Discharge System
Crushed material is discharged through a screen or gaps between cone sections.
6
Hydraulic Control
Hydraulic systems are used for adjusting the cone positions, ensuring smooth operation and easy maintenance.

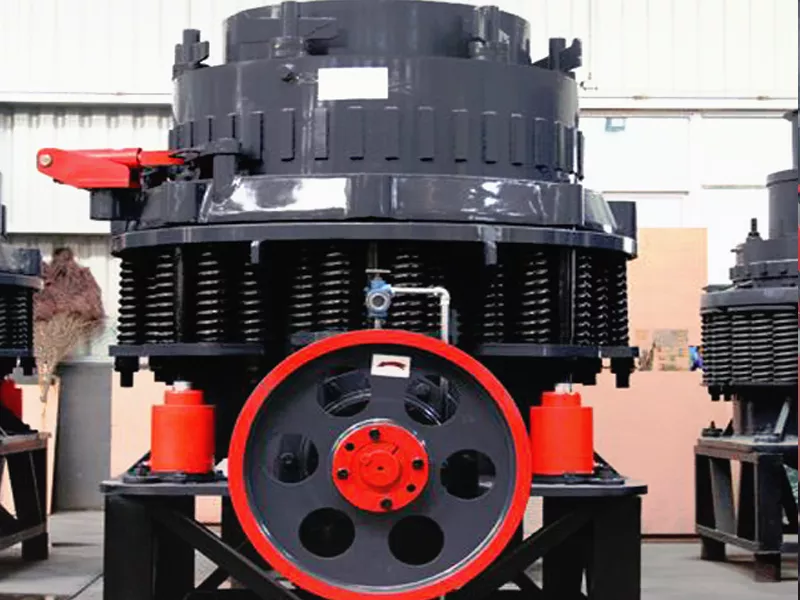

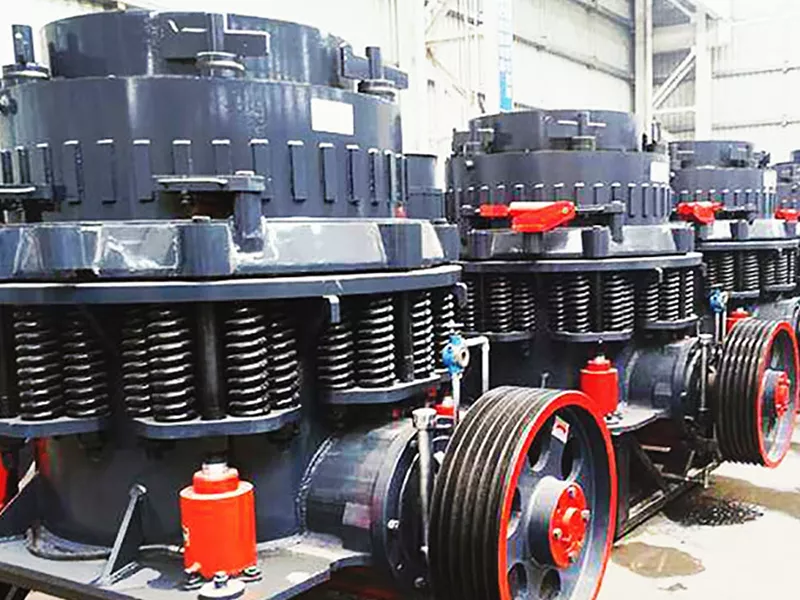

Gallery
Technical Specs
Model | Cavity Size | Max Feeding Size(mm) | Adjusting Range of Output Size(mm) | Capacity (t/h) | Motor Power (KW) | Weight (t) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|---|
ZYS36B | Fine | 85 | 9~22 | 45~91 | 75 | 14.5 | 2656×1746×2410 |
Coarse | 150 | 13-38 | 59~163 |
||||
Extra Coarse | 152 | 25-38 | 118~163 |
||||
ZYS36D | Fine | 35 | 3~13 | 27~90 | 15 |
||
Medium | 65 | 5~16 | 36~100 |
||||
Coarse | 85 | 6~19 | 59~129 |
||||
ZYS51B | Fine | 115 | 13~31 | 109~181 | 160 | 26.5 | 2958×2354×3156 |
Medium | 178 | 16~38 | 132~253 |
||||
Coarse | 205 | 19~51 | 172~349 |
||||
Extra Coarse | 220 | 25~51 | 236~358 |
||||
ZYS51D | Fine | 54 | 3~16 | 36~163 | 27 |
||
Medium | 76 | 6~16 | 82~163 |
||||
Coarse | 89 | 8~25 | 109~227 |
||||
Extra Coarse | 113 | 16~25 | 209~236 |
||||
ZYS66B | Fine | 178 | 16~38 | 181~327 | 250 | 51 | 3941×2954×3771 |
Medium | 205 | 22~51 | 258~417 |
||||
Coarse | 228 | 25~64 | 299~635 |
||||
Extra Coarse | 313 | 38~64 | 431~645 |
||||
ZYS66D | Fine | 60 | 5~13 | 90~209 | 52 |
||
Medium | 76 | 6~19 | 136~281 |
||||
Coarse | 113 | 10~25 | 190~336 |
||||
Extra Coarse | 125 | 13~25 | 253~336 |
||||
ZYS84B | Fine | 236 | 19~38 | 381~726 | 315 | 90 | 4613×3251×4732 |
Medium | 284 | 25~51 | 608~998 |
||||
Coarse | 314 | 31~64 | 789~1270 |
||||
Extra Coarse | 391 | 38~64 | 880~1361 |
||||
ZYS84D | Fine | 89 | 5~16 | 190~408 | 92 |
||
Medium | 113 | 10~19 | 354~508 |
||||
Coarse | 151 | 13~25 | 454~599 |
||||
Extra Coarse | 172 | 16~25 | 508~653 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What causes the crusher to fail to start?
Check power connections, circuit breakers, and ensure no overloads are present.
2Why has productivity decreased?
Uneven feeding or high moisture content in materials can reduce efficiency; adjust feed systems accordingly.
3Why is there excessive noise during operation?
Loose components or worn parts may cause noise; tighten all bolts and replace damaged parts promptly.
4How to achieve uniform particle sizes?
Adjust the cone gaps and ensure screens are clear of blockages for consistent output.
5What can be done if running costs are high?
Implement regular maintenance schedules and optimize operational parameters to enhance efficiency.
