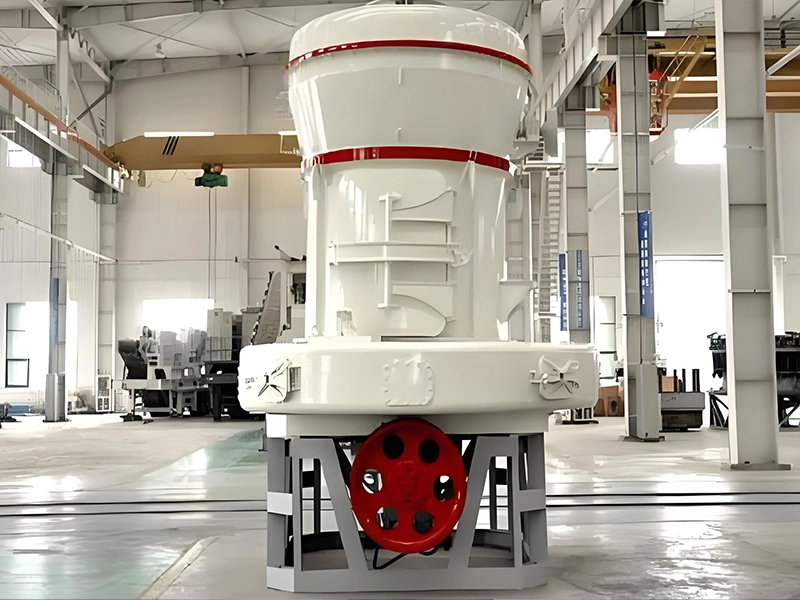

MDW European Type Grinding Mill

The MDW European Type Grinding Mill is a high-efficiency grinding machine designed for processing various materials into fine powder. Widely used across multiple industries, this mill delivers excellent performance with its advanced technology and durable construction.

3 - 33 t/h

Capacity

Leave Message

Online Services

30 - 50 mm

Max. Input Size

0.033 - 1.9 mm

Min. Output Size

Highlights

Patented technology integration

The use of multiple patented technologies such as bevel gear integral transmission, internal thin oil lubrication system, curved air duct, etc. ensures the operating efficiency and stability of the equipment.

Easy Maintenance

Key components such as fans and spindle transmission systems are lubricated with thin oil, which reduces maintenance frequency, extends oil change cycles, and makes equipment maintenance easier and more efficient.

Energy-saving design

Environmental protection certification for industrial products, using air self-circulation system and high-efficiency dust collector to effectively reduce dust emissions, meet national environmental protection standards, and achieve green production.

Efficient production capacity

Compared with traditional grinding mills, the grinding efficiency of MDW series European grinding mills is significantly improved, and the output can be increased by more than 20%, greatly improving production efficiency.

Watch Video

Working Principle

1

Feeding Material

The raw material is introduced into the mill through a feeder, which ensures a continuous and uniform supply of material to the grinding chamber.

2

Grinding Process

Inside the main grinding chamber, large grinding rollers rotate around a stationary ring (grinding ring). The friction and pressure between the rollers and the ring break down the material into smaller particles.

3

Classification (Separation)

A classifier or separator is used to separate the ground material based on its size. Larger particles are returned to the mill for further grinding, while the properly sized powder passes through.

4

Powder Transportation

The fine powder generated by the grinding process is transported into a collection system via an airflow created by fans integrated with the mill.

5

Control and Adjustment

The entire operation is monitored and controlled to maintain optimal performance, including adjusting the speed of the rollers or regulating the flow of material as needed.

6

Output

The final product, now in the form of fine powder, is collected and discharged from the system for further processing or packaging.

EQUIPMENT STRUCTURE

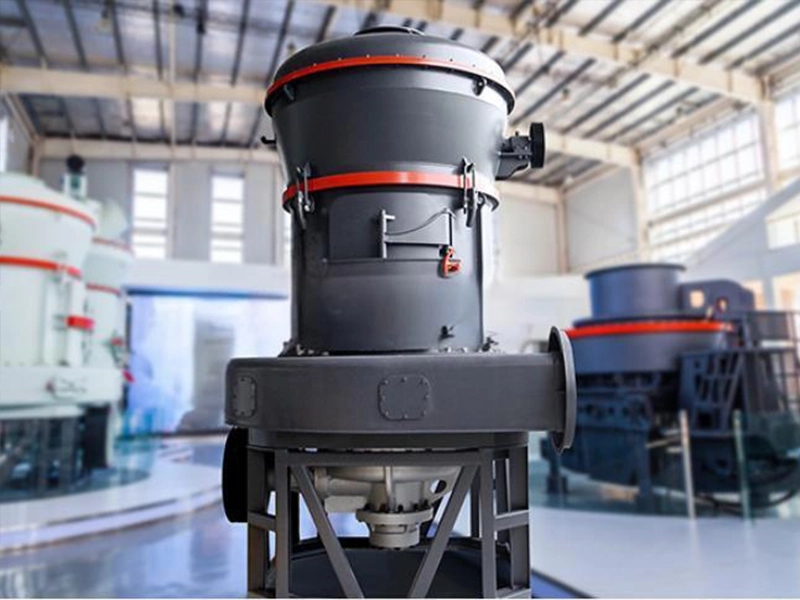

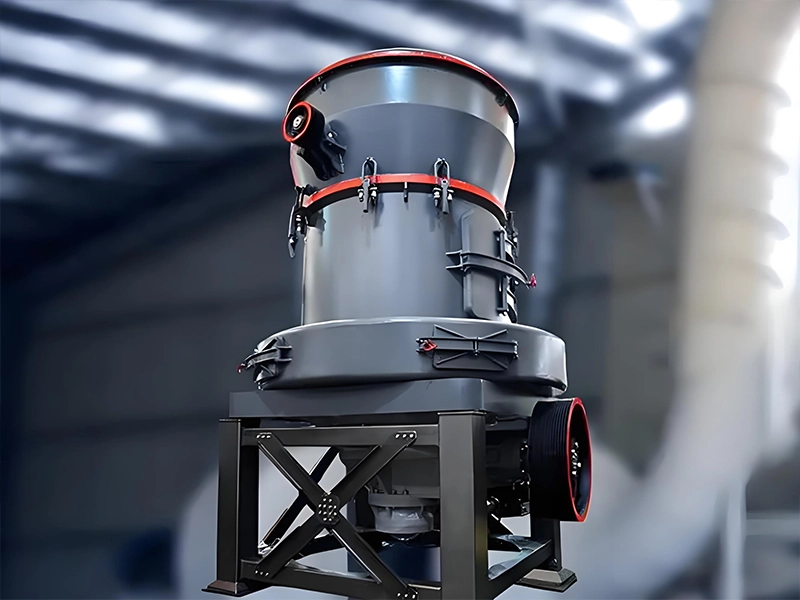

Gallery

Technical Specs

Model	Feed Particle Size (mm)	Finished Product Particle Size (mm)	Production Capacity (t/h)	Main Motor Power (kW)	Fan Motor Power (kW)	Powder Selector Motor Power (kW)	Electromagnetic Vibrating Feeder Model	Electromagnetic Vibrating Feeder Power (kW)
MDW110	<30	1.6-0.045, 0.038	45725	55	55	7.5	GZ2F	0.15
MDW138	<35	1.6-0.045, 0.038	45825	90	110	18.5	GZ3F	0.2
MDW215	<50	1.6-0.05, 0.038	15-45	280	315	55	GZ5F	0.65
MDW198	<45	1.6-0.05, 0.038	12-33	220	250	37	GZ4F	0.65

FAQ

Can't find what you are looking for?
Contact Us.

If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.

Job Position

Comments from Engineers

1What causes a decrease in grinding efficiency of the YGW European mill?

A decrease in grinding efficiency can be attributed to several factors, including worn-out grinding media, improper material hardness ratios, or insufficient maintenance. Regular inspection and replacement of abrasive components are essential to maintain optimal performance.

2How can excessive vibration be diagnosed and resolved in the YGW grinder?

Excessive vibration in the YGW mill may result from unbalanced weight distribution, loose parts, or improper alignment during installation. To resolve this issue, perform a thorough inspection of all components, tighten any loose parts, and ensure proper machine calibration.

3What are the key factors to consider when adjusting the output capacity of the YGW grinding mill?

Key factors include material properties (hardness, moisture content), feed size, and operating parameters such as rotational speed and grinding media selection. Fine-tuning these variables ensures efficient production while maintaining equipment longevity.

4Why does the YGW grinder experience overheating during operation?

Overheating in the YGW mill is often caused by inadequate cooling systems, excessive load, or poor lubrication. Implementing proper thermal management practices and ensuring sufficient cooling airflow can prevent overheating and extend equipment life.

5What steps should be taken if the grinding mill produces inconsistent particle sizes?

Inconsistent particle sizes may indicate issues with feed distribution, wear of grinding media, or improper classifier settings. To address this, optimize material flow, replace worn components, and adjust classifier parameters to achieve uniform particle size distribution.
