2025年2月24日0.5 - 25 t/h
Capacity
30 - 325 mesh
Min. Output Size
15 - 35 mm
Max. Input Size
Highlights
High Pressure Grinding
The roller and ring structure generates high pressure during grinding, significantly improving productivity.
Dust-proof Design
A closed-loop system effectively captures and recycles dust, ensuring a clean working environment.
Energy Efficiency
Optimized design reduces energy consumption while maintaining high output.
Adjustable Grind Setting
Easy adjustment of the grind setting ensures precise control over particle size.
Working Principle
1
Feeding System
Material is fed into the mill through a feeding device, ensuring a steady supply of material to the grinding area.
2
High-pressure Grinding
The grinding roller and ring structure apply high pressure to the material, achieving efficient grinding.
3
Suspension Structure
A suspension frame supports the rotating components, reducing wear and tear while maintaining stability.
4
Rotation and Grind Adjustment
The main rotor rotates at high speed, generating centrifugal force that presses the grinding roller against the ring for precise grind adjustment.
5
Classification System
A classifier separates finished particles from coarse materials, ensuring uniform particle size distribution.
6
Dust Extraction and Recycling
A closed-loop system collects dust and recycles it back into the mill to minimize waste and improve efficiency.

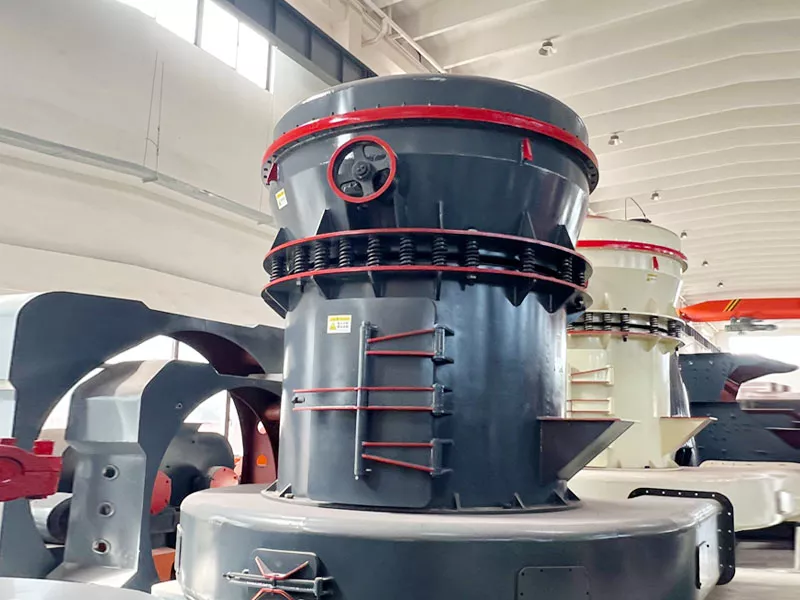

Gallery
Technical Specs
| Model | Roller | Ring | Feeding | Finished | Motor | Capacity | Overall | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Quantity (piece) | Diameter (mm) | Height (mm) | Inner Diameter (mm) | Height (mm) | Size (mm) | Size (mm) | Power (KW) | (t/h) | Dimension (mm) | |
| YGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 18.5 | 45660 | 4300*3500*5100 |
| YGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 37 | 2.1-5.6 | 7100*5900*7900 |
| YGM4121 | 5 | 410 | 210 | 1280 | 210 | 30 | 0.613-0.033 | 75 | 2.8-10.5 | 9200*7250*9700 |
| MTM160 | 6 | 440 | 270 | 1600 | 270 | 35 | 0.613-0.033 | 132 | 45797 | 95500*8500*83500 |
| MTM175 | 5 | 520 | 280 | 1750 | 280 | 40 | 0.6-0.045 | 160 | 13-25 | 12275*9555*9916 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What is the recommended feed size for an energy-saving ball mill?
Noise can result from improper lubrication or worn-out components. Regular maintenance and grease application reduce noise levels.
2Why does the mill consume too much power?
High power consumption may occur due to incorrect material hardness, overloading, or inefficient grinding settings. Ensure proper material selection and optimize grind adjustments.
3How often should the classifier be cleaned?
Cleaning frequency depends on material properties and processing capacity. Regular inspection and cleaning are recommended to maintain efficiency.
4What if the mill produces uneven particle sizes?
Uneven particles may result from improper classifier settings or worn-out grinding components. Adjust classifier speed or replace parts as needed.
5How can I extend the life of wear parts?
Use clean, moderate-hardness raw materials, avoid overloading, and inspect rollers and rings regularly to ensure optimal grinding performance and longevity.
6What is the function of the high-pressure spring?
The spring applies extra pressure to the grinding rollers, increasing the grinding force and improving both efficiency and capacity.
