SHKX Reversible Fine Crusher
2025年2月17日Box crusher
2025年2月17日SHKX Reversible Fine Crusher
2025年2月17日60 - 640 t/h
Capacity
60 mm
Max. Input Size
Highlights
High Efficiency
The VSI crusher achieves superior efficiency due to its advanced impact mechanism and precise control over material flow.
Adjustable Performance
Operators can adjust the speed of the rotor, the gap between the bars and plates, and other parameters to meet specific requirements.
Optimized Particle Shape
The vertical shaft design ensures a consistent and cubical particle shape, ideal for high-quality aggregates.
Low Maintenance
The VSI crusher features durable components and minimal wear parts, reducing maintenance costs and downtime.
Working Principle
1
Feeding Material
The material is fed into the center of the crusher through a feeding chute.
2
Rotating Impactor Bar
A rotating impeller (or rotor) with impact bars throws the material against a stationary or secondary impact plate at high speed.
3
Impact and Breakage
The force of the collision between the moving and stationary parts causes the material to break into smaller particles.
4
Material Flow
The broken material then falls through the crusher’s chamber, where it may undergo further impacts with other particles or bars.
5
Grading System
The optional waterfall classifier ensures that only appropriately sized material leaves the crusher, while larger fragments are recirculated for additional crushing.
6
Fine Particle Production
The result is a high-quality, uniformly graded product with excellent particle shape and minimal fines.

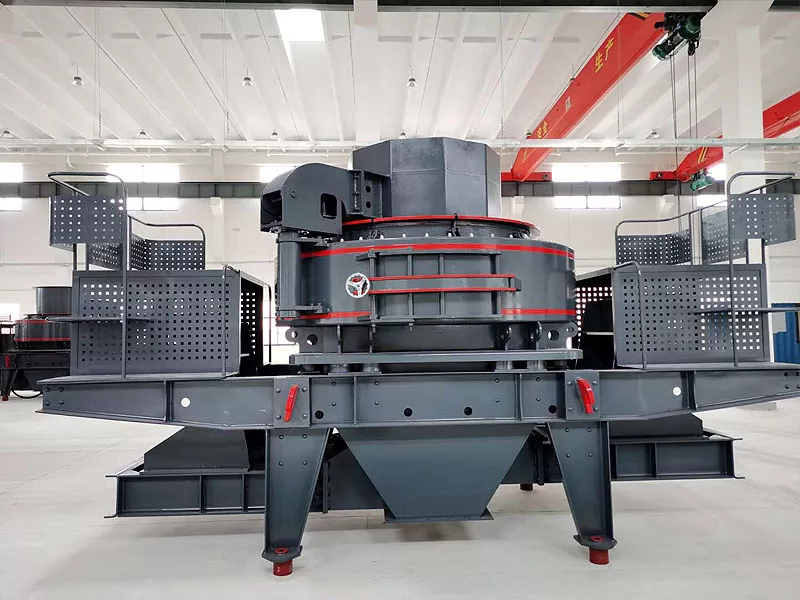

Gallery
Technical Specs
| Model | Capacity (t/h) | Max. Feeding Sizes (mm) | speed (r/min) | Motor Power (kw) | Overall Dimension (mm) | power supply | Vibration sensor Detection range |
||
|---|---|---|---|---|---|---|---|---|---|
| Scattering and central feeding | Full center feeding | Soft material | Hard material | ||||||
| VSI-7611 | 120-180 | 60-90 | ＜35 | ＜30 | 1700-1890 | 4-55×2 | 3700×2150×2100 | 380V:50Hz | 0.1-20 mm/s Continuing Adjust |
| VSI-8522 | 240-380 | 120-200 | ＜40 | ＜35 | 1530-1700 | 4-110×2 | 4140×2280×2425 | 380V:50Hz | 0.1-20 mm/s Continuing Adjust |
| VSI-9532 | 350-540 | 180-280 | ＜45 | ＜40 | 1380-1500 | 4-160×2 | 4560×2447×2778 | 380V:50Hz | 0.1-20 mm/s Continuing Adjust |
| VSI-1140 | 450-520 | 225-260 | ＜50 | ＜45 | 1180-1310 | 4-200×2 | 5000×2700×3300 | 380V/50Hz | 0.1-20 mm/s Continuing Adjust |
| VSI-1145 | 500-640 | 250-360 | ＜50 | ＜45 | 1100-1310 | 4-220×2 | 5000×2790×3320 | 380V:50Hz | 0.1-20 mm/s Continuing Adjust |
| VSI-1263 | 700-850 | 280-480 | ＜60 | ＜50 | 900-1200 | 4-315×2 | 5700×2980×4190 | 380V:50Hz | 0.1-20 mm/s Continuing Adjust |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What materials can be processed by the VSI crusher?
It is suitable for processing hard and abrasive materials such as basalt, granite, limestone, quartz, and construction waste.
2What are the advantages of using a VSI crusher compared to other crushers?
The VSI offers better particle shape control, higher efficiency, and the ability to produce fine aggregates in one pass, making it ideal for high-quality applications.
3How often does the VSI crusher require maintenance?
Maintenance frequency depends on operating conditions, but routine inspections and component replacements are typically required every 500-1000 hours of operation.
4Can the VSI crusher handle large pieces of material?
While it is designed for fine crushing, larger chunks can be processed if pre-screened beforehand to ensure optimal performance.
5What is the maximum feed size for a VSI crusher?
The maximum feed size typically ranges from 20 mm to 100 mm, depending on the model and application requirements.
