2025年4月15日220-440 v
Voltage
18.1 - 28.6 kw
Power
Highlights
Fully Automatic & High Output:
Designed for efficiency, the machine delivers large-scale production with minimal manual effort.
User-Friendly PLC Control
Equipped with a reliable PLC system, ensuring stable operation and simple control.
Convenient Operation Panel
The control box is easy to access and operate, streamlining the production process.
Versatile Block Production
Capable of producing various types of blocks, including hollow blocks, solid bricks, paving blocks, and curbstones.
Durable and Reliable
Built with high-quality components to ensure long service life and stable performance, even under continuous operation.
Working Principle
1
Raw Material Feeding
The raw materials such as cement, sand, and aggregates are loaded into the hopper. The machine uses a belt or screw conveyor to feed these materials into the mixing system.
2
Automatic Material Distribution
Once mixed, the materials are automatically distributed into the mold box through a feeder box. This ensures an even fill, which is crucial for block uniformity.
3
Hydraulic Compaction and Vibration
The machine then activates its hydraulic system and vibration motors. The dual action compacts the material tightly into the mold, ensuring the blocks are dense and strong.
4
Mold Lifting and Block Ejection
After compaction, the mold lifts and the freshly formed block is ejected onto the pallet or production platform.
5
Pallet Transfer and Stacking
The machine automatically places the blocks on pallets, and a specialized stacking system can stack them in 3–5 layers for efficient curing and space-saving.
6
Cycle Repeats
The machine resets and starts the next cycle, enabling continuous and automated block production with minimal manual intervention.

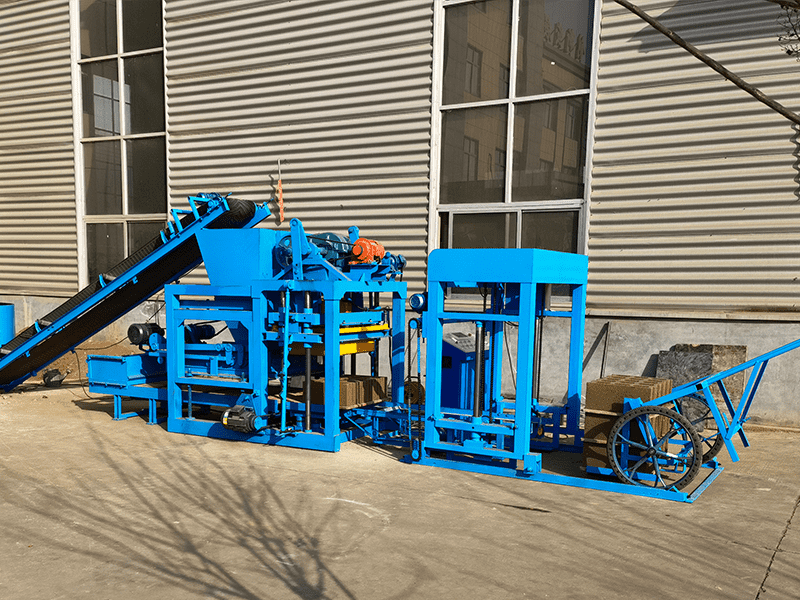

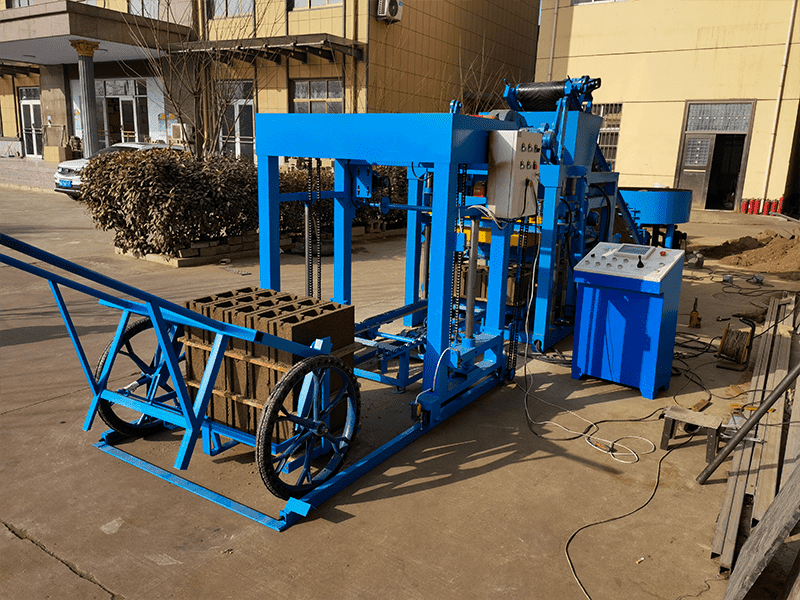

Gallery
Technical Specs
| Voltage | 220-440v 3phase 50/60HZ | ||
|---|---|---|---|
| Power | 18.1kw (main machine) 28.6kw(full line) | ||
| Forming Cycle | 30S | ||
| Main Machine Weight | 2200kg | ||
| Main Machine Dimension | 3650x1800x2000mm | ||
| Pallet Size | 880x550x20mm | ||
| Productivity | |||
| Size(LxWxH) | Pcs/Mould | Pcs/hour | Pcs/ 8 Hr |
| 400X200X200 | 4 | 576 | 4608 |
| 400X150X200 | 5 | 720 | 5760 |
| 400X125X200 | 6 | 864 | 6912 |
| 400X100X200 | 7 | 1008 | 8064 |
| 200X100X60 | 14 | 2016 | 16128 |
| 200X160X60 | 8 | 1152 | 9216 |
| 225X112.5X60 | 12 | 1728 | 13824 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What types of blocks can this machine produce?
The QTJ4-25D can produce hollow blocks, solid blocks, paving blocks, and curbstones by changing the mold.
2Is it fully automatic?
Yes, it features full automation in material feeding, distribution, compaction, and pallet stacking. However, some manual handling may still be needed for loading raw materials or block curing.
3How many blocks can it produce per day?
Depending on the block type and raw material mix, it can produce up to 5,000–8,000 blocks per day.
4How difficult is it to operate the machine?
The machine is equipped with a PLC control system and intuitive buttons, making it easy to operate with minimal training.
5What kind of maintenance does it require?
Regular maintenance includes lubricating moving parts, checking the hydraulic system, cleaning the mold, and inspecting electrical components.
6What is the required power supply?
The machine typically operates on a 3-phase industrial power supply (e.g., 380V/50Hz), but it can be customized based on your local standard.
