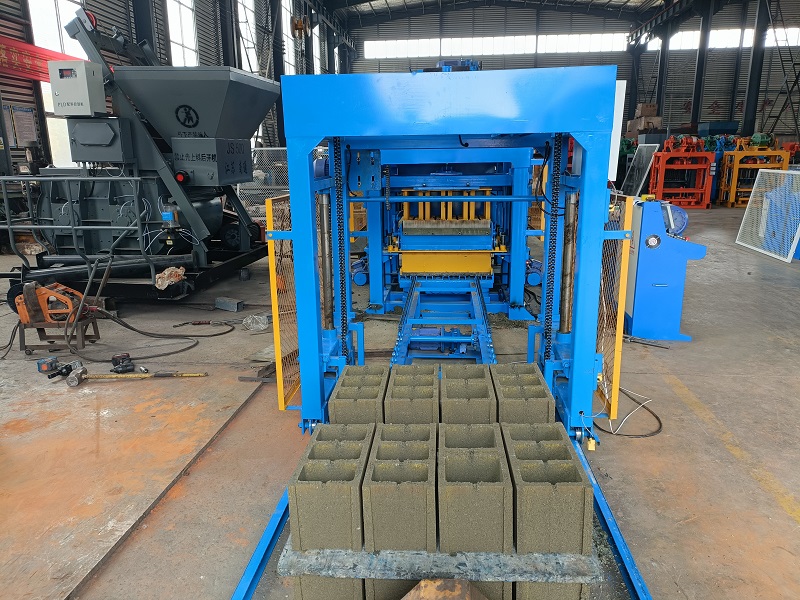

2025年4月8日Automatic Block Machine
22.55 kw
Power
3000 kg
Weight
Highlights
High Degree of Automation
Equipped with a PLC intelligent control system to achieve automated production and reduce manual labor.
High Production Efficiency
Short molding cycle and high output capacity meet the demands of large-scale production.
Stable Product Quality
Uses hydraulic transmission technology with strong pressure for excellent molding and reliable product consistency.
Low Energy Consumption
Energy-efficient design significantly reduces operating costs.
Easy Maintenance
Simple structure makes the equipment easy to maintain, lowering maintenance expenses.
Versatile Application
Capable of producing various types of blocks, such as non-fired bricks, paving bricks, and cement blocks, to meet diverse market needs.
Working Principle
1
Automatic Material Feeding
Raw materials such as sand, cement, and aggregates are automatically fed into the mold. The material feeder ensures consistent and accurate material distribution for high-quality block production.
2
Hydraulic Pressing
Once the materials are in the mold, the hydraulic system applies a high amount of pressure to compact the mixture, ensuring that the blocks have high density and strength.
3
Molding Cycle
The PLC-controlled system precisely manages the molding cycle, controlling the duration and pressure, which results in uniform blocks with consistent quality and shape.
4
Automatic Pallet Feeding
After the blocks are molded, the machine automatically feeds pallets to the molding chamber, ensuring a smooth transition between molding and block discharge.
5
Block Discharge
The molded blocks are automatically discharged onto the pallet, using a specialized discharge mechanism, which reduces labor and improves efficiency.
6
Stacking and Curing
After the blocks are discharged, the automated stacker places them in layers, facilitating the curing process and improving storage efficiency.
Gallery
Technical Specs
| Voltage | 220-440v 3phase 50/60HZ | ||
|---|---|---|---|
| Power | 22.55kw (main machine) 33.4kw(full line) | ||
| Forming Cycle | 15S | ||
| Main Machine Weight | 3000kg | ||
| Main Machine Dimension | 3650x1900x2200mm | ||
| Pallet Size | 880x550x20mm | ||
| Productivity | |||
| Size(LxWxH) | Pcs/Mould | Pcs/hour | Pcs/ 8 Hr |
| 400X200X200 | 4 | 960 | 7680 |
| 400X150X200 | 5 | 1200 | 9600 |
| 400X125X200 | 6 | 1440 | 11520 |
| 400X100X200 | 7 | 1680 | 13440 |
| 200X100X60 | 14 | 3360 | 26880 |
| 200X160X60 | 8 | 1920 | 15360 |
| 225X112.5X60 | 12 | 2880 | 23040 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1How should I operate the QTJ4-18 Automatic Block Machine?
Always follow the manufacturer’s operation manual carefully to avoid mistakes that could damage the equipment or cause safety issues.
2What maintenance does the machine require?
Regular maintenance includes cleaning the hydraulic system, inspecting the electrical system, and replacing the hydraulic oil to ensure smooth operation and prolong the machine's life.
3Can this machine produce different types of blocks?
Yes, the QTJ4-18 can produce various types of blocks, such as non-fired bricks, paving bricks, and cement blocks, by changing the molds.
4How do I choose the right molds for this machine?
Choose molds based on your production needs and the required specifications for the blocks. Ensure that the molds are compatible with the machine.
5How does the hydraulic system improve the block quality?
The hydraulic transmission system provides high pressure for better molding, ensuring stable and consistent block quality.
6Is the machine easy to maintain?
Yes, the QTJ4-18 has a simple structure, making it easy to maintain, thus reducing downtime and maintenance costs.
