2025年2月13日90 - 480 t/h
Capacity
2100 mm
Max. Input Size
Highlights
High Crushing Efficiency
The PFW Impact Crusher delivers outstanding performance with advanced impact crushing technology, ensuring efficient material processing.
Adjustable Impact Plates
Features customizable impact plates for precise control over output size and particle shape to meet specific requirements.
Durable Construction
Built with high-quality materials and robust design, ensuring long service life and reliability in demanding environments.
Low Maintenance
Designed for easy maintenance with accessible components, minimizing downtime and operational costs.
Working Principle
1
Rotating Rotor
The rotor rotates at high speed, creating centrifugal force to propel materials into the impact plates.
2
Impact Plates Interaction
Moving and fixed impact plates work together to break materials through both impact and shearing forces.
3
Adjustment Mechanism
The adjustable gap between impact plates allows precise control over the output particle size.
4
Material Flow Control
A feeding mechanism ensures a steady flow of material into the crusher for optimal processing efficiency.
5
Breakage Pattern Optimization
The design maximizes the crushing effect by focusing energy on specific areas, resulting in uniform and desired particle sizes.
6
Wear-Resistant Components
High-quality materials and interchangeable parts reduce wear and tear, ensuring long-term durability and minimal maintenance.

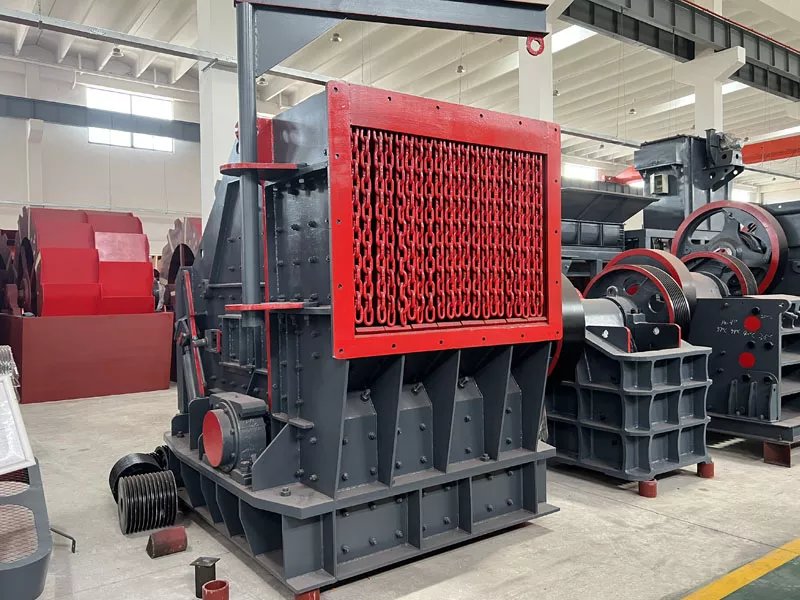

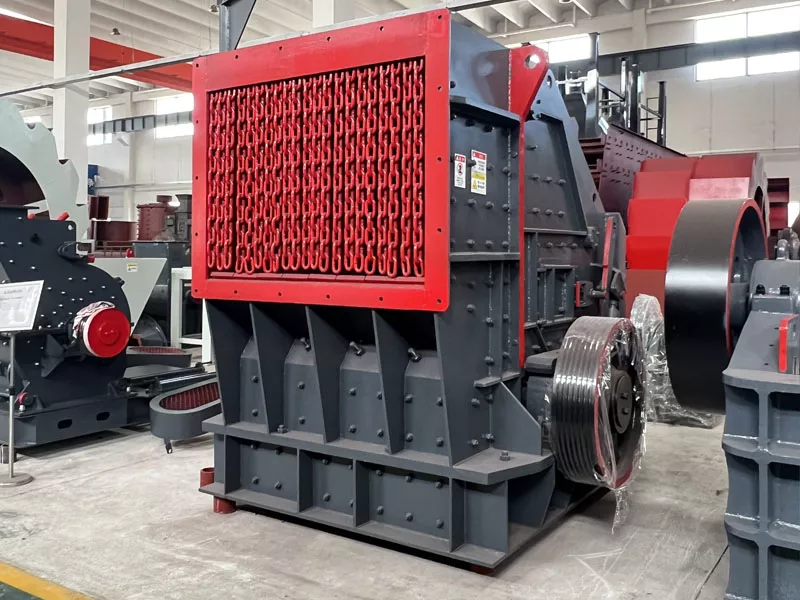

Gallery
Technical Specs
Table 1: for crusher with three crushing chambers
| Model | Rotor size | Feed opening | Max. Feed | capacity | Power | weight (t) | Overall dimension |
|---|---|---|---|---|---|---|---|
| (mm) | (mm) | size (mm) | (t/h) | (kW) | (mm) | ||
| PFW1214Ⅲ | Ф1150×1400 | 570×1430 | 250 | 90-170 | 132 | 16 | 2550×2310×2100 |
| PFW1315Ⅲ | Ф1300×1500 | 625×1530 | 300 | 180-270 | 200 | 20 | 2960×2570×2380 |
| PFW1318Ⅲ | Ф1300×1800 | 625×1830 | 300 | 220-300 | 250 | 23 | 2960×2870×2380 |
| PFW1415Ⅲ | Ф1400×1500 | 800×1530 | 350 | 280-350 | 250 | 22.5 | 3120x2650x2660 |
Table 2: for crusher with two crushing chambers
| Model | Rotor size | Feed opening | Max. Feed | capacity | Power | weight (t) | Overall dimension |
|---|---|---|---|---|---|---|---|
| (mm) | (mm) | size (mm) | (t/h) | (kW) | (mm) | ||
| PFW1214Ⅱ | Ф1150×1400 | 1100x1430 | 500 | 130-200 | 132 | 18.5 | 2400x2310x2550 |
| PFW1315Ⅱ | Ф1300×1500 | 1200x1530 | 600 | 180-320 | 200 | 21.5 | 2700x2570x2800 |
| PFW1318Ⅱ | Ф1300×1800 | 1200x1830 | 700 | 240-400 | 250 | 25.5 | 2700x2870x2800 |
| PFW1415Ⅱ | Ф1400×1500 | 1300x1530 | 700 | 300-480 | 250 | 25 | 2900x2700x3000 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1How can I maximize the productivity of my PFW Impact Crusher?
To maximize productivity, ensure proper material feed, regular maintenance, and optimal adjustment of impact plates according to your specific application requirements.
2 What safety features does the PFW Impact Crusher have?
It includes safety guards and robust construction to ensure safe operation. Regular inspections and adherence to safety protocols are recommended for optimal performance and operator safety.
3Can the PFW Impact Crusher handle high-capacity operations?
Yes, the PFW series is designed to handle high-capacity crushing tasks efficiently, making it suitable for large-scale industrial applications.
4What maintenance is required for the PFW Impact Crusher?
Regular maintenance includes checking wear parts (such as impact plates) for replacement, lubricating moving components, and ensuring proper alignment and operation. Its low-maintenance design reduces downtime and operational costs.
5What industries benefit most from using the PFW Impact Crusher?
It is widely used in mining, construction, recycling, and aggregate production industries where medium to fine crushing of materials like limestone, coal gangue, and construction waste is required.
