2025年2月13日35 - 550 t/h
Capacity
10 - 80 mm
Finished product specs
10 - 80 mm
Output Size
Highlights
High Performance and Efficient Material Crushing
The PF Impact Crusher delivers superior performance with its robust design and advanced crushing technology, ensuring high productivity and precise control over output size for medium to fine material crushing.
Adjustable Impact Plates for Customized Output
The machine features adjustable impact plates, allowing operators to fine-tune the output size according to specific material requirements, ensuring flexibility in different crushing operations.
Durable and Low Maintenance
Built with high-quality materials, the PF Impact Crusher is designed for durability and long service life. Its low maintenance requirements make it a cost-effective solution for mining, construction, and recycling industries.
Compact Design and Portability
Its compact structure makes it easy to install and transport, saving space while maintaining high efficiency, making it ideal for various industrial applications.
Working Principle
1
Feeding Process
Material is fed into the crusher through a hopper and evenly distributed across the feeding area by a feeder.
2
Impact Crushing Action
The material is thrown against the impact plates (ruggedly designed) by high-speed rotation of the rotor, resulting in primary crushing. Large pieces of material are broken into smaller fragments upon impact.
3
Counter Impact Action
Unbroken or partially broken material from the first impact is thrown back toward the rotor and impacts the opposite side of the crusher cavity, ensuring further fragmentation.
4
Screening and Discharge
The crushed material falls onto a screen plate inside the crusher. Material that meets the size requirements passes through the screen and is discharged from the machine, while larger pieces are retained for further processing.
5
Adjustment of Output Size
The gap between the rotor and impact plates can be adjusted to control the final product size (output). This feature allows operators to produce aggregates with specific particle sizes as required.
6
Maintenance and Accessibility
The PF Impact Crusher is designed for easy maintenance, with accessible components such as the rotor, impact plates, and screen. Wear parts are simple to replace, reducing downtime and operational costs.

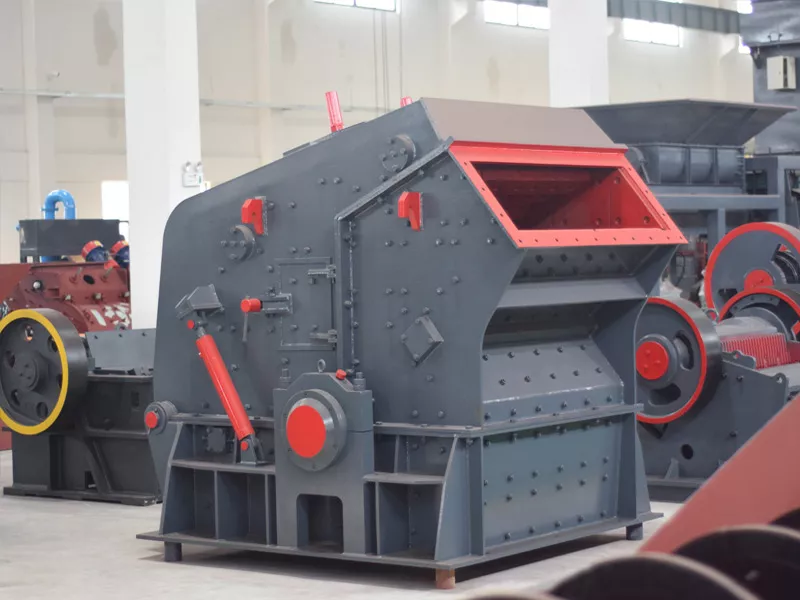

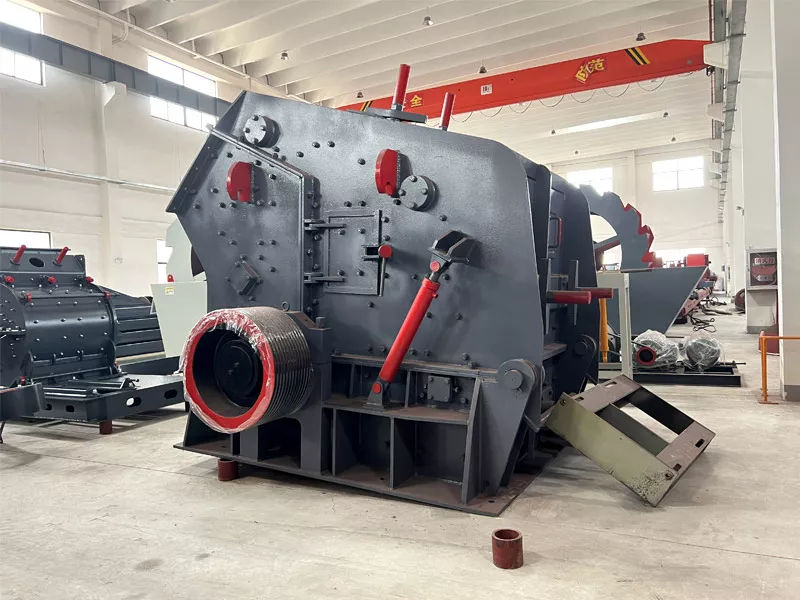

Gallery
Technical Specs
| Model | Rotor Size*length (mm) | Feed Opening Size (mm) | Ma*. Feeding Size (mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|
| PF1007 | Φ1000 * 700 | 400 * 730 | 300 | 35-50 | 55 | 2400 * 1558 * 2660 |
| PF1010 | Φ1000 * 1050 | 400 * 1080 | 350 | 50-80 | 4-75 | 2455 * 2086 * 2800 |
| PF1210 | Φ1250 * 1050 | 400 * 1080 | 350 | 60-120 | 6-110 | 2590 * 2050 * 2800 |
| PF1214 | Φ1250 * 1400 | 400 * 1430 | 350 | 80-160 | 6-132 | 2590 * 2400 * 2810 |
| PF1315 | Φ1300 * 1500 | 860 * 1520 | 350 | 120-260 | 6-200 | 2930 * 2760 * 3050 |
| PF1320 | Φ1300 * 2000 | 860 * 3200 | 500 | 250-350 | 300 | 2900 * 3200 * 3250 |
| PF1515 | Φ1500 * 1500 | 1145 * 1520 | 500 | 220-280 | 280 | 2690 * 2049 * 2698 |
| PF1520 | Φ1520 * 2000 | 1245 * 2050 | 700 | 300-550 | 315-440 | 3581 * 3560 * 3865 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What is the main application of the PF Impact Crusher?
The PF Impact Crusher is primarily used for medium to fine material crushing in mining, construction, recycling, and other industries. It efficiently processes materials like limestone, coal gangue, and construction waste.
2Why is the PF Impact Crusher considered energy-efficient?
The PF Impact Crusher features a compact design and high-performance components that reduce energy consumption while maintaining strong output performance. Its adjustable impact plates also allow for precise control over material size, optimizing efficiency.
3What are the key advantages of the PF Impact Crusher compared to other crushers?
Key advantages include robust construction, low maintenance requirements, and adaptability to various materials. It is known for its durability and ability to handle high volumes of material with consistent results.
4How can I adjust the output size of the PF Impact Crusher?
The output size can be adjusted by modifying the gap between the impact plates. Fine-tuning this gap allows operators to achieve the desired particle size efficiently.
5What are common causes of noise in the PF Impact Crusher?
Noise in the PF Impact Crusher can be caused by worn-out parts, improper alignment, or insufficient lubrication. Regular maintenance and inspections help minimize these issues.
