2025年2月13日50 - 2700 t/h
Capacity
2100 mm
Max. Input Size
Highlights
High Performance Crushing
The PEC jaw crusher is designed for exceptional crushing performance, capable of handling large volumes of material while delivering high output rates, making it ideal for medium to large-scale operations.
Adjustable Jaw Gap for Fine Control
Operators can easily adjust the gap between the fixed and moving jaws, allowing precise control over the final product size and ensuring efficient material processing.
Energy Efficiency and Cost Savings
The PEC jaw crusher combines advanced technology with energy-efficient designs, reducing operating costs while maintaining high productivity levels, making it a cost-effective solution for industrial applications.
Durable and Reliable Construction
Built with high-quality materials and robust components, the PEC crusher is designed to withstand heavy-duty applications, providing long service life and minimal maintenance requirements.
Working Principle
1
Feed Material Entry
The process begins when raw material is fed into the crusher through a hopper and onto the moving jaw plate. Proper feeding ensures efficient crushing and prevents blockages.
2
Jaw Plate Motion
The motor drives a belt or chain connected to the eccentric shaft, which causes the movable jaw plate to swing back and forth. This motion generates the necessary force to crush the material between the fixed and moving plates.
3
Crushing Process
As the jaw plates move closer together, the material is squeezed until it reaches the desired size. The gap between the plates can be adjusted to control the final product's particle size.
4
Product Discharge
After being crushed to the required size, the material falls through the discharge opening and is conveyed away for further processing or storage.
5
Adjustment Mechanism
Operators can manually or hydraulically adjust the gap between the jaw plates to optimize crushing efficiency and achieve the desired particle size distribution.
6
Crushing Force Calculation
The force exerted by the jaw plates depends on the motor power, plate dimensions, and material properties. Advanced calculations ensure that the crusher operates within safe limits and delivers high productivity.

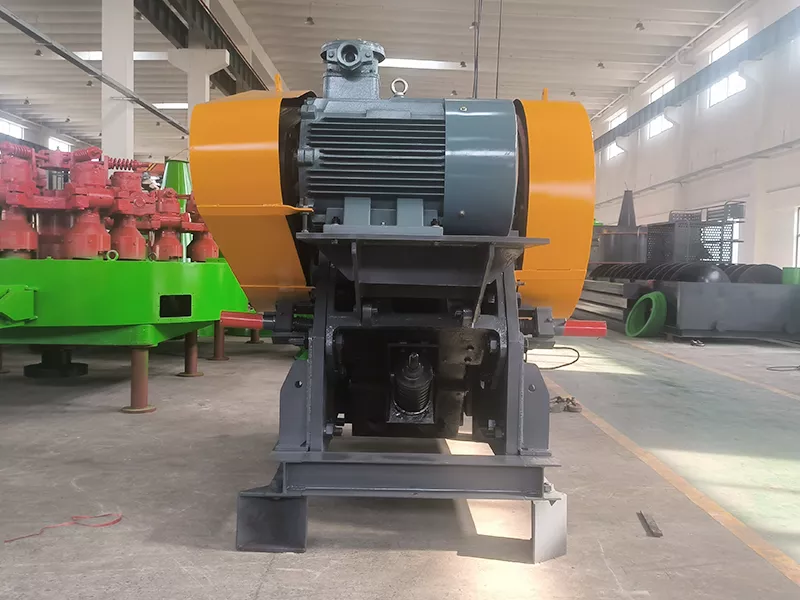

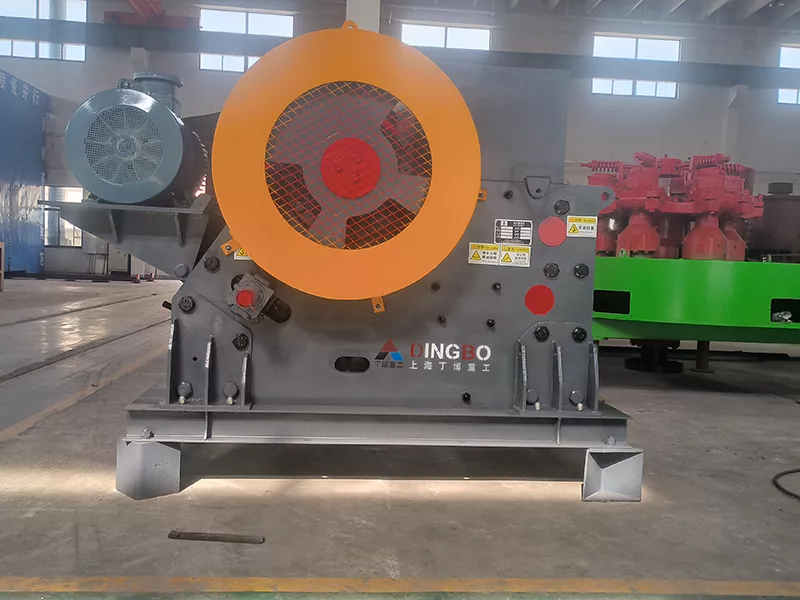

Gallery
Technical Specs
OVERALL DIMENSIONS（mm） | PEC96 | PEC106 | PEC120 | PEC125 | PEC140 | PEC160 | PEC200 |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | 930 | 1060 | 1200 | 1250 | 1400 | 1600 | 2000 |
||||||||
B | 580 | 700 | 870 | 950 | 1070 | 1200 | 1500 |
||||||||
C | 1755 | 2030 | 2687 | 2800 | 3010 | 3700 | 4040 |
||||||||
D | 2880 | 3320 | 3670 | 4100 | 4400 | 5900 | 6700 |
||||||||
E | 1610 | 2075 | 3272 | 3440 | 3950 | 4580 | 4950 |
||||||||
F | 1460 | 2005 | 3882 | 2980 | 3140 | 3750 | 4465 |
||||||||
G | 755 | 1135 | 2008 | 2100 | 2260 | 2650 | 2800 |
||||||||
H | 2500 | 2630 | 2724 | 3470 | 3755 | 4280 | 4870 |
||||||||
I9 | 465 | 700 | 1569 | 980 | 1050 | 1300 | 1400 |
||||||||
COPPER MINNG MACHINE | KE96 | KE106 | KE120 | KE125 | KE140 | KE160 | KE200 |
||||||||
TECHNICAL SPECIFIACTIONS |
|||||||||||||||
POWER | 90Kw | 110Kw | 160Kw | 160Kw | 200Kw | 250Kw | 400Kw |
||||||||
PEVOLUTIONS | 330Rpm | 280Rpm | 230Rpm | 220Rpm | 220Rpm | 220Rpm | 200Rpm |
||||||||
CRUSHER DEAD WEIGHT | 9759Kg | 14350Kg | 26000Kg | 37970Kg | 47120Kg | 71330Kg | 121510Kg |
||||||||
WORKING WEIGHT | 11870Kg | 17050Kg | 29300Kg | 43910Kg | 54010Kg | 83300Kg | 137160Kg |
||||||||
FEEDING PORT |
|||||||||||||||
WIDTH | 930mm | 1060mm | 1200mm | 1250mm | 1400mm | 1600mm | 2000mm |
||||||||
DEPTH | 580mm | 700mm | 870mm | 950mm | 1070mm | 1200mm | 1500mm |
||||||||
PRODUCTION CAPACITY OF KE CRUSHER | KE96 | KE106 | KE120 | KE125 | KE140 | KE160 | KE200 |
||||||||
GRANULARITY（mm） | DISCHARGE PORT SIZE（mm） | t/h |
|||||||||||||
0-150 | 100 | 175-225 | 205-265 | 235-325 | 290-380 | ||||||||||
0-185 | 125 | 220-280 | 255-325 | 285-395 | 350-455 | 385-500 | |||||||||
0-225 | 150 | 265-335 | 305-385 | 340-475 | 410-535 | 455-590 | 520-675 | ||||||||
0-260 | 175 | 310-390 | 355-450 | 385-540 | 470-610 | 520-675 | 595-775 | 760-990 |
|||||||
0-300 | 200 | 395-500 | 530-690 | 590-765 | 675-880 | 855-1110 |
|||||||||
0-340 | 225 | 590-770 | 655-850 | 750-975 | 945-1230 |
||||||||||
0-375 | 250 | 650-845 | 725-945 | 825-1070 | 1040-1350 |
||||||||||
0-410 | 275 | 900-1170 | 1130-1470 |
||||||||||||
0-410 | 300 | 980-1275 | 1225-1590 |
||||||||||||
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What are the main components of the PEC jaw crusher?
Key components include:
- Fixed Jaw Plate
- Movable Jaw Plate
- Eccentric Shaft
- Connecting Rod
- Toggle Mechanism
- Motor
2What safety features does the PEC jaw crusher have?
Modern PEC crushers are equipped with safety mechanisms such as overload protection and emergency stop systems
to ensure safe operation.
3Can I operate the PEC jaw crusher continuously?
Yes, the PEC jaw crusher is designed for continuous operation in industrial settings, but regular maintenance
is essential to ensure long-term performance.
4How energy-efficient is the PEC jaw crusher?
The PEC series is engineered with energy efficiency in mind, making it a cost-effective solution for large-scale
operations. Its design minimizes power consumption while maintaining high crushing performance.
5What safety features does the PEC jaw crusher have?
Modern PEC crushers come with advanced safety features such as:
- Overload protection systems.
- Emergency stop mechanisms.
- guards to protect operators from accidental contact.
- Proper ventilation systems to handle dust and debris.
