PC Hammer Crusher
2025年2月17日
Box crusher
2025年2月17日PC Hammer Crusher
2025年2月17日Box crusher
2025年2月17日150 - 6000 t/h
Capacity
1800 mm
Max. Input Size
Highlights
High Crushing Efficiency
The heavy-duty hammers and optimized impact zones ensure efficient breaking of tough materials.
Rugged Construction
Built with high-quality steel and wear-resistant components, it can handle large capacities and harsh operating conditions.
Adjustable Settings
The crusher allows for easy adjustment of the hammer gap and screen plate to meet different production requirements.
Low Maintenance
With a robust design and heavy-duty parts, the PCZ hammer crusher requires minimal maintenance and downtime.
Working Principle
1
Feeding Material
The raw material is fed into the crusher through a feeding hopper or conveyor system.
2
Hammer Rotation
The main rotor equipped with heavy-duty hammers rotates at high speed, generating centrifugal force.
3
Impact Crushing
As the hammers swing outward due to rotation, they strike the incoming material with strong impacts, breaking it into smaller pieces.
4
Screening
The crushed material is screened through a sieve, and material not meeting the requirements is struck again by the hammers to ensure the final product meets the particle size requirements.
5
Recycling Process
Larger particles that do not meet the desired size are recirculated back into the crusher for further crushing.
6
Rotor Protection
The rotor is protected by a wear-resistant liner, ensuring long service life even when processing hard materials.

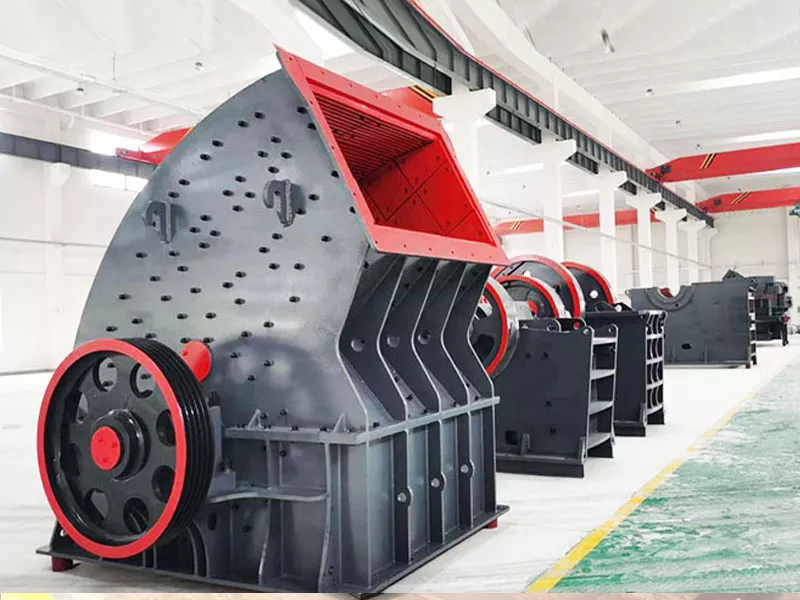

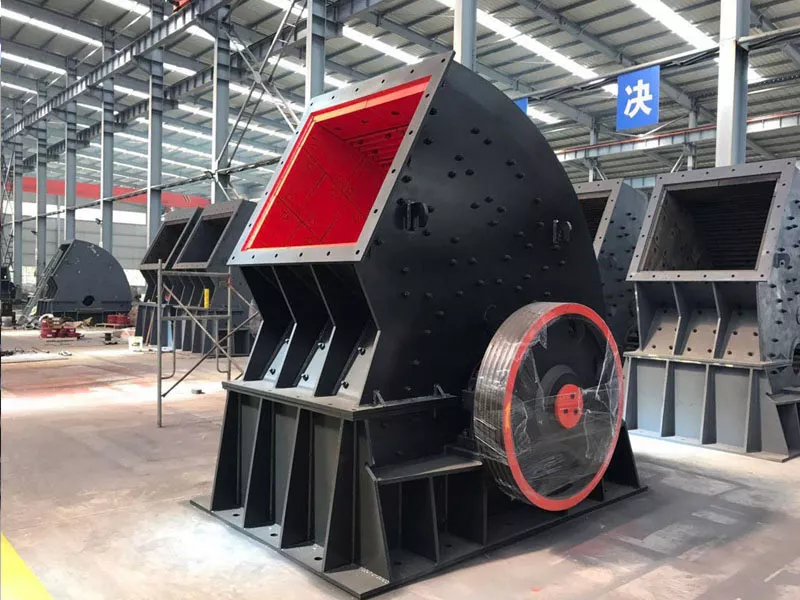

Gallery
Technical Specs
| Model | Work rotor diameter / length（mm） | Inlet Size （mm） | Feeding size （mm） | Capacity（t/h） | Motor power（kw） | Dimensions （mm） |
|---|---|---|---|---|---|---|
| PCZ-1310 | 1310*1050 | 890*1075 | ≤650 | 150- 180 | 160 | 2950*2250*2495 |
| PCZ-1512 | 1500*1160 | 1350*1400 | ≤750 | 250- 320 | 160*2 | 3260*2624*2750 |
| PCZ-1513 | 1500*1350 | 1290*900 | ≤750 | 300- 350 | 180*2 | 3260*2624*2750 |
| PCZ-1615 | 1650*1452 | 1500*1200 | ≤1000 | 420- 500 | 220*2 | 3667*2937*3436 |
| PCZ-1618 | 1650*1800 | 1500*1280 | ≤1200 | 570- 670 | 250*2 | 3680*3350*3515 |
| PCZ-1620 | 1660*1900 | 2000*1200 | ≤1200 | 800- 1000 | 400*2 | 3667*3200*3436 |
| PCZ-1820 | 1800*1964 | 2000*1200 | ≤1200 | 1000- 1200 | 450*2 | 3700*3270*3515 |
| PCZ-2225 | 2200*2485 | 2530*1560 | ≤1600 | 2000- 3000 | 1250 | 34460*4565*4670 |
| PCZ-3332 | 3300*3220 | 3300*1840 | ≤1800 | 4500- 6000 | (1250kw-6)*2 | 6710*6122*6340 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What are the main causes of wear on the hammers in a PCZ crusher?
Wear occurs due to the high-impact forces exerted during operation, as well as abrasive materials being processed. Regular inspection and replacement of worn-out hammers are necessary for optimal performance.
2Why is the output of my PCZ hammer crusher low?
Low output may result from improper feed size, incorrect hammer gap settings, or material buildup inside the crusher. Adjusting these parameters can help improve productivity.
3How often should I lubricate the bearings in the PCZ crusher?
Bearings should be lubricated regularly based on the manufacturer’s recommendations, typically every 10–20 hours of operation, depending on the workload and environment.
4What steps can I take to protect the rotor from damage?
To protect the rotor, ensure that feed materials are free from oversized or foreign objects, maintain proper lubrication, and inspect the rotor for wear regularly.
5How can I reduce noise levels during operation?
Noise can be minimized by ensuring proper maintenance (e.g., lubricating components), using soundproof covers, and keeping the equipment in good working condition.
