2025年2月17日5 - 480 t/h
Capacity
25 mm
Min. Output Size
350 mm
Max. Input Size
Highlights
High Crushing Efficiency
The combination of hammers and screen ensures efficient material breakdown, achieving high throughput in various applications.
Adjustable Output Control
Operators can easily adjust the gap between hammers and screens to produce materials within desired size ranges (e.g., 0-3mm, 3-10mm).
Rugged Construction
The crusher is built with high-quality materials, ensuring durability and long service life even under heavy-duty operations.
Low Maintenance
Its compact design and advanced components make it easy to maintain, reducing downtime and operational costs.
Working Principle
1
Feeding Material
The material to be crushed is fed into the crusher through a hopper or feeder system.
2
Hammer Impact
Heavy-duty hammers attached to a rotating rotor strike the incoming material with high force, breaking it into smaller particles.
3
Screening and Separation
The crushed materials are screened through a screen, and qualified finished products are directly discharged, while unqualified large particles are returned for further crushing.
4
Adjustable Output Size
The distance between the hammers and the screen can be adjusted to control the final product size, ensuring flexibility for different applications.
5
Dust Control
A dust collection system is integrated to minimize air pollution and ensure a cleaner working environment.
6
Energy Efficiency
The crusher is designed with energy-saving features, reducing operational costs while maintaining high productivity.

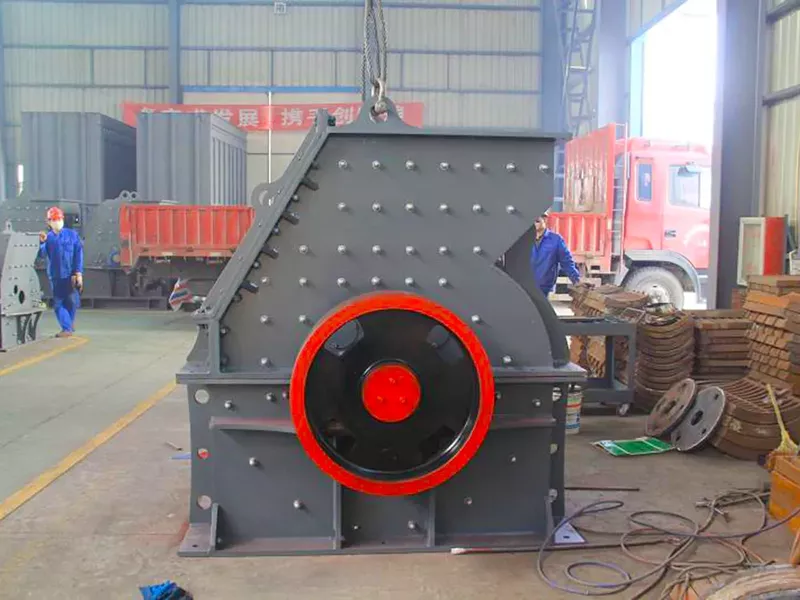

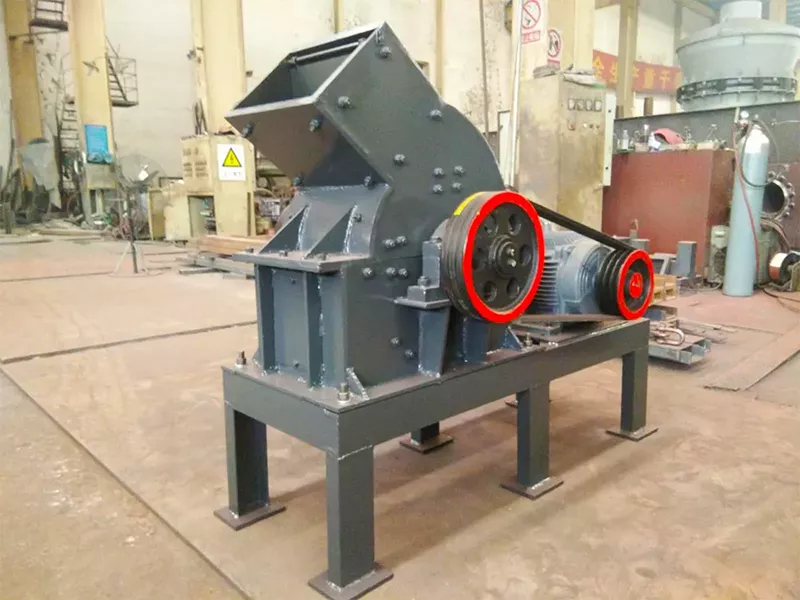

Gallery
Technical Specs
| Model | Feed particle size (mm) | Discharge size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) | Overall dimensions（mm） |
|---|---|---|---|---|---|---|
| PC400*300 | ≤200 | ≤25 | 45787 | 11 | 0.8 | 900*670*860 |
| PC600*400 | ≤250 | ≤30 | 45952 | 22 | 1.5 | 1200*1050*1200 |
| PC800*600 | ≤250 | ≤25 | 18-40 | 55 | 3.8 | 1310*1180*1310 |
| PC1000*800 | ≤350 | ≤35 | 25-50 | 75 | 4 | 1600*1390*1575 |
| PC1000*1000 | ≤300 | ≤35 | 30-55 | 132 | 8 | 1800*1590*1775 |
| PC1250*1250 | ≤350 | ≤35 | 35-65 | 180 | 14 | 2000*1600*1890 |
| PC1400*1400 | ≤350 | ≤35 | 50-100 | 280 | 32 | 2365*1870*2220 |
| PC1600*1600 | ≤350 | ≤35 | 100-150 | 480 | 37.5 | 3050*2850*2800 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What is the maximum feed size of the PC Hammer Crusher?
The maximum feed size depends on the specific model but generally ranges from 50mm to several hundred millimeters. Always refer to the technical specifications for your particular crusher.
2How does the PC Hammer Crusher handle different materials?
It is designed to handle various materials, including soft to medium-hard rocks and ores, with adjustable settings to adapt to different material properties.
3What maintenance is required for the hammer crusher?
Regular maintenance includes checking hammer wear, cleaning or replacing screens, lubricating moving parts, and inspecting the rotor alignment. Follow the manufacturer’s guidelines for optimal performance.
4Is the PC Hammer Crusher noisy during operation?
Like most crushers, it may generate noise during operation. However, modern designs incorporate soundproofing features and materials to minimize noise levels. Additionally, proper installation and maintenance can help reduce operational noise.
5How does the crusher ensure safety during operation?
Safety measures include protective covers for rotating parts, emergency stop systems, and guards to prevent unauthorized access. Operators should follow safety protocols to ensure safe operation.
