2025年2月24日10 - 100 t/h
Capacity
0-8 mm
Min. Output Size
50 mm
Max. Input Size
Highlights
High Efficiency
The hammer mill achieves high output with a relatively small footprint due to its compact design and optimized crushing chamber.
Adjustable Particle Size
The screen can be easily adjusted to produce different particle sizes, catering to various industrial needs.
Durable Construction
High-quality materials are used for the rotor, hammers, and lining plates, ensuring long service life under heavy-duty operations.
Low Energy Consumption
Compared to other grinding equipment, the PC hammer mill operates with lower energy consumption while maintaining high efficiency.
Working Principle
1
Feeding Material
Raw material is fed into the hopper through a vibrating feeder or directly.
2
Hammer Impact
The rotor with mounted hammers rotates at high speed, generating centrifugal force that throws the hammers outward.
3
Material Breakage
When the hammers hit the material against the inner liner (breaking bars), the material is crushed into small particles.
4
Screening
The crushed material is screened through a sieve to ensure that the final product meets the particle size requirements.
5
Adjustment of Particle Size
The screen’s aperture can be adjusted to control the final product size, making it versatile for different applications.
6
Discharging
The finished material is discharged from the mill while the larger particles are recirculated for further crushing.

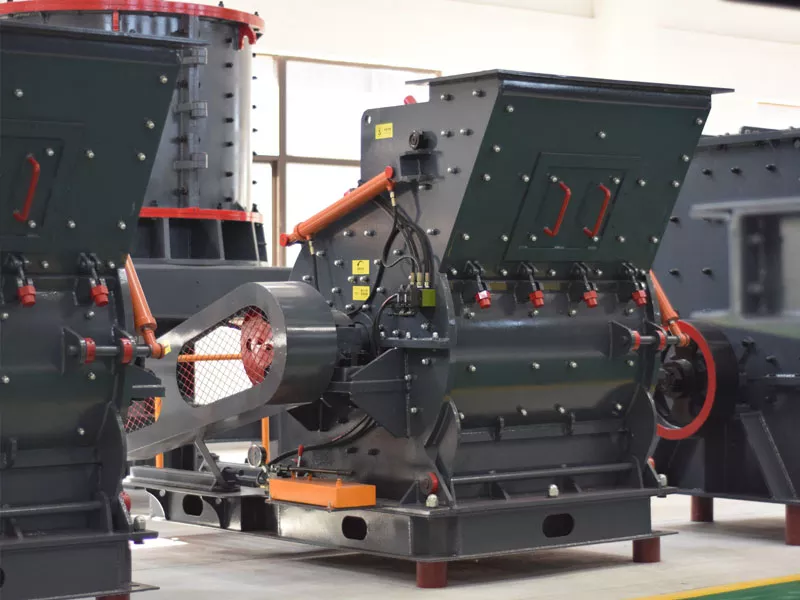

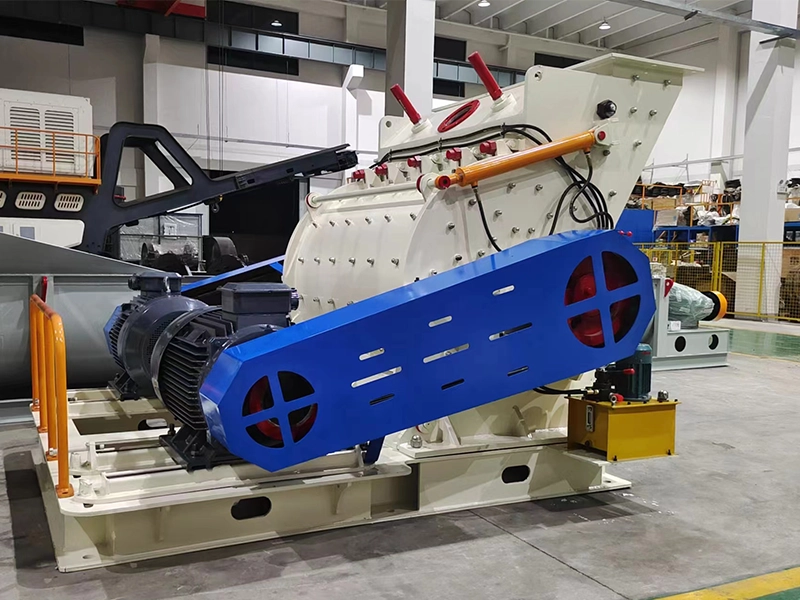

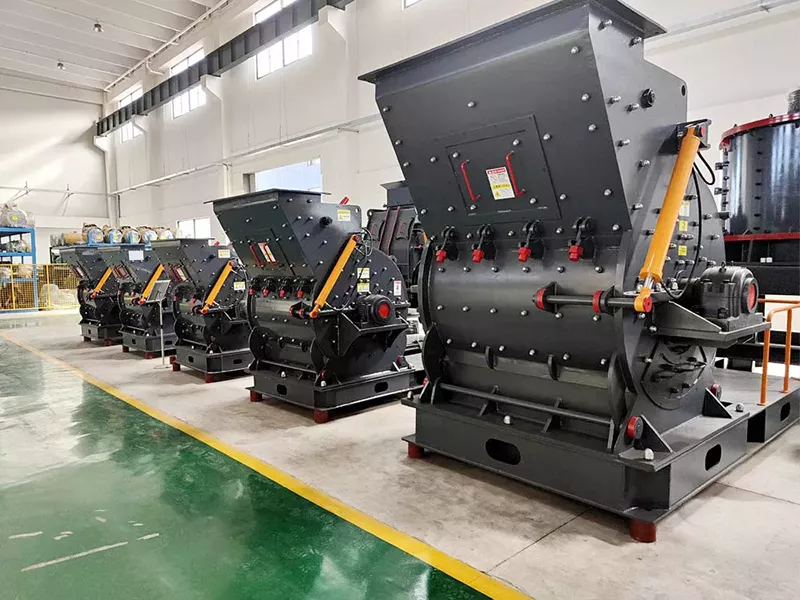

Gallery
Technical Specs
| Model | PC4008-75 | PC4012-90 | PC4012-90L | PC4015-132 |
|---|---|---|---|---|
| Rotor Diameter(mm) | 750 | 900 | 900 | 1150 |
| Rotor Length(mm) | 800 | 1200 | 1250 | 1500 |
| Rotor Speed(r/mm) | 800-1000 | 800-1000 | 960-1000 | 550-800 |
| Feed Opening Size(mm) | 320X930 | 400X1200 | 380x1450 | 500X1500 |
| Max Feed Size(mm) | <50 | <50 | <50 | <100 |
| Product Size(mm) | 0-3 | 0-3 | 0-3 | 0-8 |
| Processing Capacity(t/h) | 45960 | 30-60 | 50-100 | 60-100 |
| Motor Power(kw) | 55-75 | 75-90 | 55-75*2 | 110-132 |
| Hammer Quantity(piece) | 18 | 32 | 40 | 32 |
| Dimensions(mm) | 2310 x 1665 x 1610 | 2840 x 2100 x 2020 | 3000 x 2600 x 2070 | 3720 x 2650 x 2540 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1Why is there excessive noise during operation?
Noise may indicate improper installation or worn-out components such as hammers or bearings. Ensure all parts are properly lubricated and tightened, and conduct regular maintenance.
2How to increase the output of the hammer mill?
Overloading the mill beyond its capacity will not increase output; it can cause damage. Optimize feeding, ensure proper hammer alignment, and maintain equipment regularly for maximum efficiency.
3Why does the screen get blocked frequently?
Screen clogging is caused by material particles being too large or too sticky. Check and clean the screen regularly and adjust the feed size according to the machine specifications.
4What causes uneven wear of hammers?
Uneven wear is often caused by improper installation or material distribution within the mill. Ensure even feeding and check hammer alignment during maintenance.
5How to reduce vibration during operation?
Vibration can result from misalignment, loose parts, or unbalanced weights. Conduct regular inspections, tighten all bolts, and use balancing weights as needed.
6Why is the product particle size inconsistent?
Inconsistent particle size may be caused by worn or improperly adjusted screens. Worn screens should be replaced promptly and ensure they are properly aligned during installation.
