2025年2月18日50 - 550 t/h
Capacity
20 mm
Min. Output Size
80 mm
Max. Input Size
Highlights
High Crushing Efficiency
The combination of shearing and compressing forces ensures a high output with minimal material waste.
Adjustable Gap Control
Hydraulic systems enable precise control of the crushing gap, allowing operators to tailor the process to specific requirements.
Durable Construction
Robust materials and heavy-duty components ensure long service life and reliable performance in demanding environments.
Energy Efficiency
Hydraulic roller crushers are designed with energy-efficient mechanisms, reducing operational costs and environmental impact.
Working Principle
1
Feed Material
The raw material (such as rock, ore, or concrete) is fed into the crushing chamber through a hopper.
2
Roller Rotation
Two heavy-duty rollers rotate in opposite directions, creating a shearing and compressing force on the material between them.
3
Material Nipping
As the rollers move apart and together, they “nip” the material, forcing it to pass through the crusher’s gap (adjustable via hydraulic control).
4
Compression Force
The hydraulic system generates the necessary force to maintain consistent pressure on the rollers, ensuring a uniform crushing action.
5
Screening and Discharge
The crushed material is screened through a screen to ensure that it meets the required particle size before being discharged. The material that does not meet the particle size will remain in the crusher for further crushing.
6
Adjustment and Safety
The hydraulic system allows for real-time adjustment of the gap between rollers, ensuring optimal performance and protecting the machine from overloading.

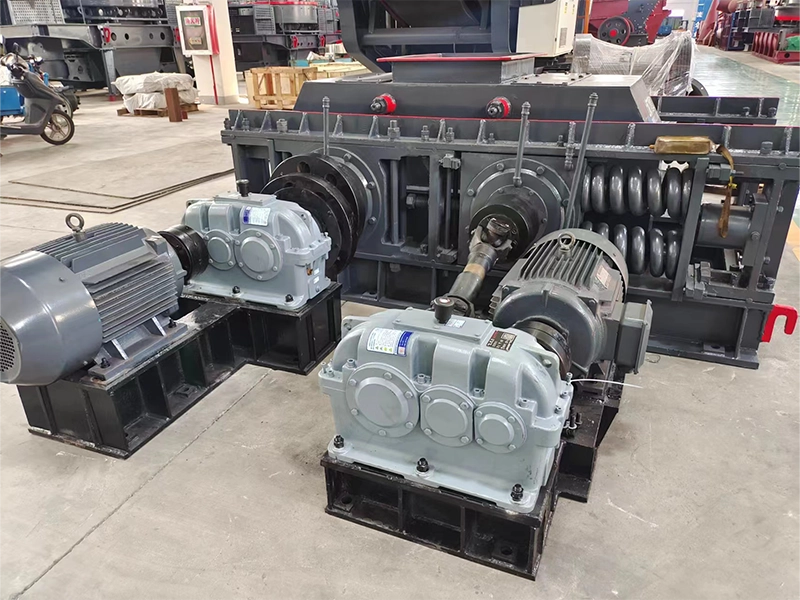

Gallery
Technical Specs
| Model | Roller Diameter (mm) | Roller Width (mm) | Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Feed Opening Size (mm) | Motor Power (kw) | External Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2PG400 | 400 | 252 | <30 | 45724 | 45721 | 100 x 200 | 5.5 x 2 | 1850 x 1100 x 800 | 1300 |
| 2PG600 | 600 | 400 | <40 | 45724 | 45797 | 370 x 400 | 11 x 2 | 2555 x 2490 x 1050 | 4300 |
| 2PG800 | 800 | 600 | <60 | 45726 | 15-40 | 600 x 500 | 22 x 2 | 3490 x 2884 x 1035 | 8500 |
| 2PG1000 | 1000 | 700 | <80 | 45728 | 20-50 | 700 x 600 | 30 x 2 | 4398 x 3354 x 1190 | 12000 |
| 2PG1200 | 1200 | 750 | <90 | 45730 | 30-80 | 800 x 600 | 45 x 2 | 4547 x 3653 x 1478 | 17000 |
| 2PG1500 | 1500 | 800 | <100 | 45731 | 40-100 | 800 x 800 | 75 x 2 | 44832 x 4037 x 1765 | 27000 |
| 2PG1800 | 1800 | 800 | <130 | 45734 | 60-130 | 800 x 800 | 90 x 2 | 5645 x 3850 x 2092 | 30000 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1Why is the hydraulic roller crusher noisy?
Noise can be caused by worn-out components or insufficient lubrication. Regular maintenance and grease application can reduce noise levels.
2What causes overload in a hydraulic roller crusher?
Overloading typically occurs when large, hard materials enter the crusher. Operators should ensure proper feed control and screen out oversized materials beforehand.
3How often does the screen need to be cleaned?
The frequency of cleaning depends on the material being processed and its moisture content. Regular inspection and cleaning are recommended to maintain optimal throughput and prevent blockages.
4How does the hydraulic system benefit the crusher?
The hydraulic system automatically adjusts the roller gap and provides overload protection, reducing damage risk and downtime.
5How often do the rollers need to be replaced?
Roller lifespan depends on material hardness and operating hours. Regular inspection is recommended every 500–1000 hours.
6What causes uneven wear on the rollers?
Uneven feed distribution, improper roller gap adjustment, or processing highly abrasive material can cause uneven wear.
