2025年2月14日50 - 1200 t/h
Capacity
6 - 38 mm
Min Discharge
Highlights
High Performance and Capacity
The HPD Hydraulic Cone Crusher is designed for high productivity with optimized crushing processes, ensuring efficient material reduction and increased throughput.
Automatic Adjustment System
Equipped with an advanced hydraulic adjustment system, it provides precise control over the crusher’s settings, enabling automatic cone height regulation for optimal performance and reduced downtime.
Superior Hydraulics Technology
The incorporation of cutting-edge hydraulics ensures smooth operation, enhanced reliability, and improved energy efficiency, making it ideal for demanding mining and construction applications.
Safety and Reliability
Featuring advanced safety mechanisms and robust build quality, the HPD Hydraulic Cone Crusher delivers consistent performance while minimizing maintenance requirements, ensuring long-term operational reliability.
Working Principle
1
Hydraulic Adjustment System
The cone crusher uses a hydraulic system to adjust the gap between the fixed cone and the movable cone, allowing precise control over the product size.
2
Cone Rotation for Crushing
The main shaft rotates, driving the movable cone to move up and down. This creates a squeezing force that crushes the material against the fixed cone.
3
Layered Compression Technology
Material is crushed in multiple layers within the crushing chamber, ensuring high productivity and better product quality.
4
Hydraulic Overload Protection
The hydraulic system acts as an overload protection mechanism. If an oversized object enters the crusher, the system automatically releases pressure to prevent damage.
5
Optimized Chamber Design
The crusher features optimized cone profiles (e.g., short-head or standard types) to suit different materials and production requirements.
6
Automated Control System
Modern control systems ensure smooth operation, monitoring key parameters like oil pressure, temperature, and flow to maintain optimal performance and safety.

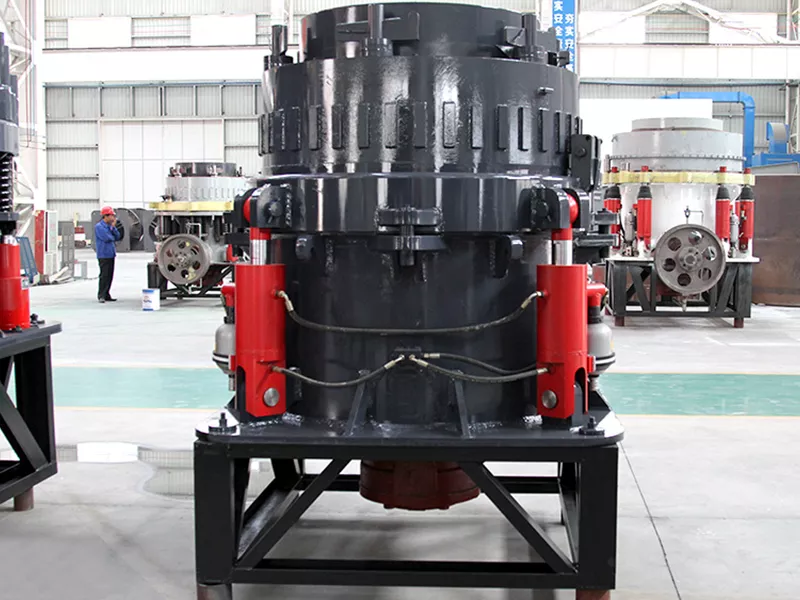

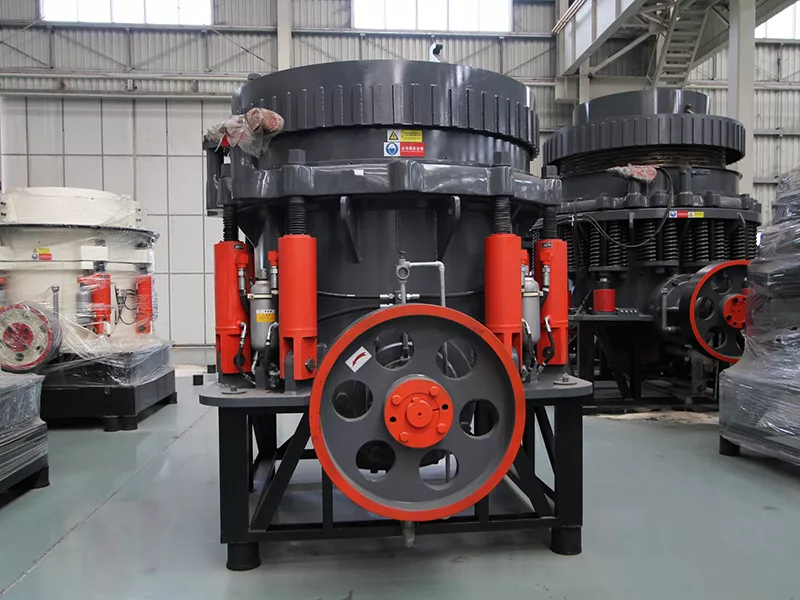

Gallery
Technical Specs
| Model | Cavity Size (Coarse/Fine) | Max Feeding Size(mm) | Minimum Discharging Size(mm) | Capacity (t/h) | Power (kw) | |
|---|---|---|---|---|---|---|
| HPD100 | C1 | 140 | 19 | 50-140 | 90 | |
| C2 | 100 | 13 | 50-140 | 90 | ||
| M | 70 | 9 | 50-140 | 90 | ||
| F1 | 50 | 9 | 50-140 | 90 | ||
| F2 | 20 | 6 | 50-140 | 90 | ||
| HPD200 | C2 | 185 | 19 | 90-250 | 160 | |
| M | 125 | 16 | 90-250 | 160 | ||
| F1 | 95 | 13 | 90-250 | 160 | ||
| F2 | 75 | 10 | 90-250 | 160 | ||
| HPD300 | C1 | 230 | 25 | 110-440 | 250 | |
| C2 | 210 | 19 | 110-440 | 250 | ||
| M | 150 | 16 | 110-440 | 250 | ||
| F1 | 105 | 13 | 110-440 | 250 | ||
| F2 | 80 | 10 | 110-440 | 250 | ||
| C1 | 295 | 30 | 135-630 | 315 | ||
| C2 | 251 | 25 | 135-630 | 315 | ||
| M | 196 | 20 | 135-630 | 315 | ||
| F1 | 110 | 13 | 135-630 | 315 | ||
| F2 | 90 | 10 | 135-630 | 315 | ||
| HPD500 | C1 | 330 | 38 | 220-790 | 400 | |
| C2 | 290 | 30 | 220-790 | 400 | ||
| M | 210 | 22 | 220-790 | 400 | ||
| F1 | 135 | 16 | 220-790 | 400 | ||
| F2 | 95 | 13 | 220-790 | 400 | ||
| HPD800 | C1 | 350 | 38 | 310-1200 | 630 | |
| C2 | 299 | 32 | 310-1200 | 630 | ||
| M | 265 | 25 | 310-1200 | 630 | ||
| F1 | 220 | 16 | 310-1200 | 630 | ||
| F2 | 150 | 13 | 310-1200 | 630 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What materials is the HPD Hydraulic Cone Crusher suitable for?
The HPD Hydraulic Cone Crusher is suitable for crushing medium-hard to hard rocks, such as basalt, granite, sandstone, limestone, and quartz. It performs well in mining, aggregate production, and recycling industries.
2How do I set up the HPD Hydraulic Cone Crusher before operation?
Before starting the crusher, ensure all components are properly assembled and lubricated. Conduct a pre-start inspection to check for any loose parts or malfunctions. Connect the power supply and hydraulic system according to the manual guidelines.
3What should I do if there is uneven wear on the crushing chamber?
Uneven wear can be addressed by adjusting the eccentricity of the cone or replacing worn-out liners. Regularly inspect the wearing parts and maintain them as recommended in the maintenance schedule.
4How often should I lubricate the HPD Hydraulic Cone Crusher, and what type of lubricant should I use?
The HPD Hydraulic Cone Crusher requires regular lubrication to ensure smooth operation and longevity. Typically, lubrication intervals depend on the operating hours, but it is recommended to follow the manufacturer’s guidelines. Use high-quality hydraulic oils suitable for your specific working conditions.
5What causes a decrease in production efficiency of the HPD Hydraulic Cone Crusher?
A decrease in production efficiency can be caused by several factors, including improper feed size distribution, worn-out liners, or insufficient lubrication. It is important to maintain proper feed control, monitor liner wear, and ensure adequate lubrication for optimal performance.
