2025年2月24日0.5 - 45 t/h
Capacity
325-2500 mesh
Min. Output Size
20 mm
Max. Input Size
Highlights
High Efficiency
The HGM grinder achieves high production efficiency due to its advanced grinding technology and optimized design, ensuring maximum material utilization.
Durable Construction
Equipped with energy-efficient motors and a streamlined grinding system, the HGM minimizes power consumption while maintaining high performance.
Durable Construction
The mill is constructed using high-quality materials for its main components (e.g., grinding rollers and discs), ensuring long service life and resistance to wear.
Easy Maintenance
The HGM features a modular design, allowing for quick and easy maintenance without disassembling the entire machine. This reduces downtime and lowers operational costs.
Working Principle
1
Feeding Material
The material is fed into the mill through a feeder, where it is evenly distributed onto the grinding table.
2
Grinding Rollers and Discs Interaction
Large grinding rollers rotate around the grinding disc at high speeds. These rollers apply pressure to the material on the grinding table, creating a strong impact and friction force.
3
Material Circulation
The combination of centrifugal force and rotational motion ensures that the material circulates continuously between the grinding table and the roller discs.
4
Grinding Process
As the material moves across the grinding table, it is subjected to repeated impacts and shearing forces from the grinding rollers, resulting in fine particles.
5
Classification and Separation
The ground material passes through a classifier (optional) to separate the desired particle size. Larger particles are recirculated for further grinding.
6
Powder Collection
The fine powder is collected by an air duct system and transported to a dust collector or directly into storage.

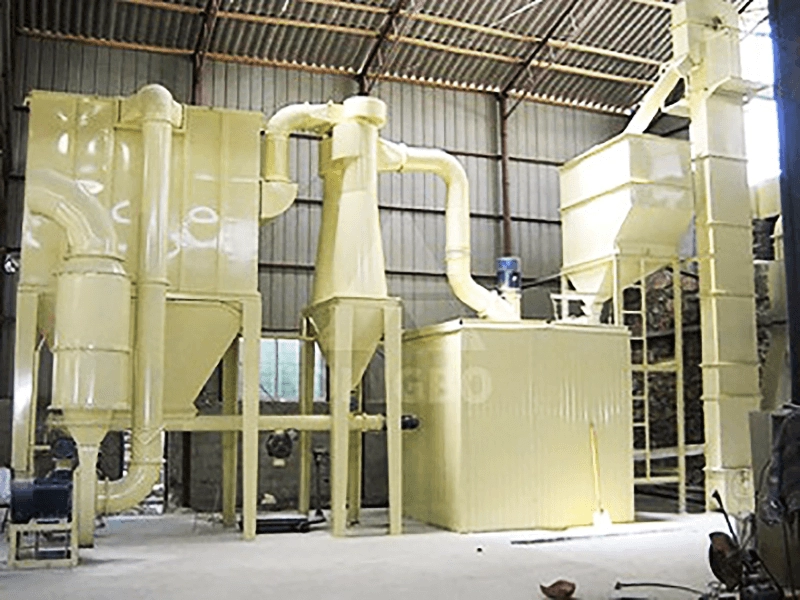

Gallery
Technical Specs
| Model | HGM80 | HGM80A | HGM90L | HGM100L-Ⅱ | HGM100P | HGM125L | HGM1680L |
|---|---|---|---|---|---|---|---|
| Ring Diameter(mm) | 800 | 800 | 900 | 1000 | 1000 | 1250 | 1680 |
| Ring Number (PCS) | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Input Size (mm) | ≤10 | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 | ≤20 |
| Output Size (mesh) | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-2000 | 150-1500 |
| Capacity (t/h) | 0.5-6 | 0.5-6 | 0.8-7 | 1.2-10.5 | 1.2-11.5 | 2.5-20.5 | 5-45 |
| Outlet Size L*W*H (mm) | 8605*4139*6050 | 10454*3393*6626 | 11735*3952*7525 | 14507*3633*7562 | 14362*4200*7562 | 19261*4406*8591 | 25067*5414*9007 |
| Main motor power (kw) | 75 | 75 | 45*2 | 132 | 75×2 | 185 | 315 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What materials can the HGM ultrafine grinder handle?
It is suitable for grinding various non-metallic minerals, such as calcium carbonate, limestone, dolomite, feldspar, kaolin, bentonite, etc., with a Mohs hardness of less than 7.
2How does the classifier work in the HGM grinder?
The classifier separates the ground material based on particle size. It ensures that only particles meeting the desired fineness are collected, while larger particles are recirculated for further grinding.
3What is the typical range of fineness achievable with the HGM grinder?
The HGM can produce powders with a fineness ranging from 200 mesh to 1500 mesh (depending on the material and classifier settings).
4How often does the grinding roller need replacement?
The service life of the grinding rollers depends on the material’s hardness and operating conditions. Typically, they can last for several years with proper maintenance.
5Can the HGM grinder operate continuously without downtime?
Yes, the HGM is designed for continuous operation and can run 24/7 if required. However, regular maintenance and inspection are recommended to ensure smooth operation.
