GP Single Cylinder Hydraulic Cone Crusher

The GP Single Cylinder Hydraulic Cone Crusher is an advanced, efficient crusher for medium to hard materials, offering robust construction, precise control, and high productivity. Ideal for mining and quarrying, it’s a reliable, durable solution for material processing.

40 - 1000 t/h

Capacity

Leave Message

Online Services

80 - 350 mm

Feed Opening Size

Highlights

Efficient Crushing

Delivers high crushing efficiency with a finely-tuned crushing chamber that produces a consistent product shape.

Hydraulic Adjustment

The hydraulic system allows for easy and precise adjustment of the discharge opening, ensuring optimal performance.

Single-Cylinder Design

The simple single-cylinder design improves reliability, reduces maintenance needs, and lowers operating costs compared to multi-cylinder crushers.

Overload Protection

Equipped with overload protection, it helps prevent damage to the machine, ensuring safe and smooth operation.

Watch Video

Working Principle

1

Material Feed

Material enters through the feed opening at the top of the crusher.

2

Compression Force

The motor drives the rotating cone, creating a compressive force between the blow bar and the stationary cone.

3

Crushing Chamber

The material is trapped in the crushing chamber, where it is crushed to the desired size by the interaction of the two cones.

4

Adjustment Mechanism

The gap between the cones can be adjusted hydraulically to control the output size.

5

Hydraulic Pressure Regulation

Hydraulic systems ensure precise pressure control, optimizing the crushing process and maintaining consistent product quality.

6

Discharge

The crushed material is discharged through the gap openings at the bottom of the crusher.

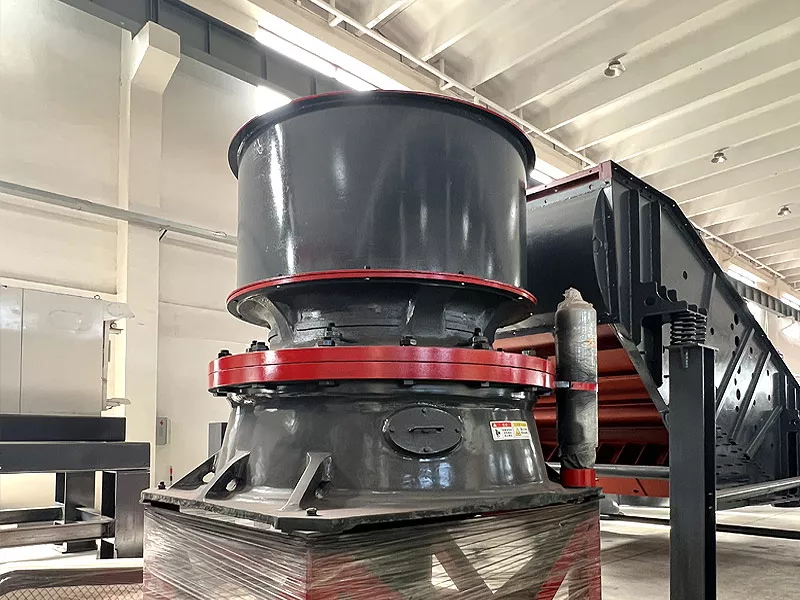

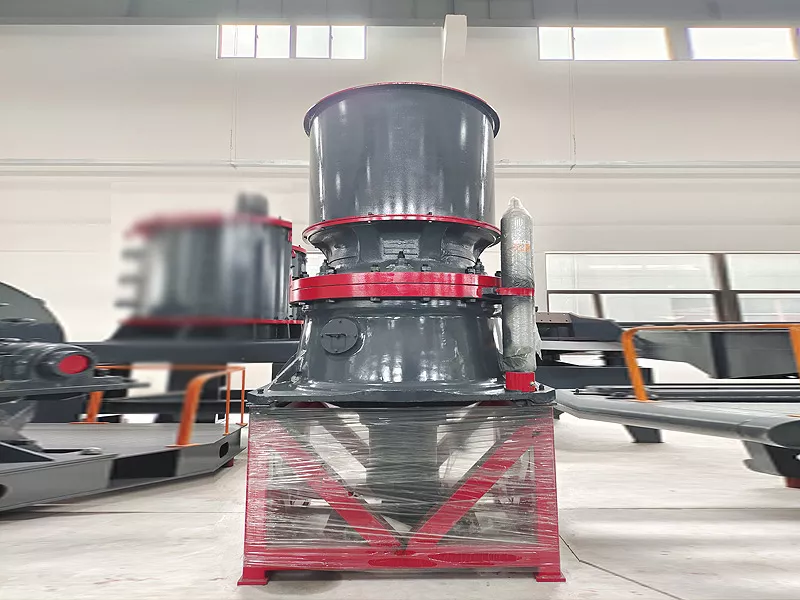

Gallery

Technical Specs

Model		GDP 300			GDP 500			GDP 800
Cone Bottom Diameter (mm)		1200			1650			2200
Feed Opening Size (mm)		220	150	80	300	230	100	350	290	130
Discharge Opening Adjustment Range (mm)		20-50	9-25	5-13	25-60	13-30	7-14	30-60	15-35	8-15
Maximum Feed Size at Cone Bottom (mm)		165	130	70	240	195	85	300	230	110
Capacity (t/h)		90-260	45-120	40-100	210-480	128-280	100-200	600-1000	350-680	260-400
Main Motor	Model	Y315M2-6			Y315M2-6			Y400-6
	Power (kw)	220			315			400
	Voltage (v)	380			380			380
Rotation Speed (r/min)		300			250			160
Lubrication Station Capacity (L/min)		63			125			250
Machine Dimensions	Length (m)	3.95			3.37			4.7
	Width (m)	1.9			2.6			3.6
	Height (m)	3.14	3.1	3.06	4.1	4.04	3.99	5.4	5.4	5.4
Machine Weight (t)		19	18.6	18.6	37.1	37	36.9	77.9	77.1	76.8
Remarks		1. Machine weight does not include the motor. 2. The motor and main machine are not connected by belt transmission.

FAQ

Can't find what you are looking for?
Contact Us.

If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.

Job Position

Comments from Engineers

1What is the main advantage of a single-cylinder hydraulic cone crusher over multi-cylinder designs?

The single-cylinder design offers higher capacity, simpler construction, and easier maintenance compared to multi-cylinder designs.

2Can the gap between the cones be adjusted while the machine is running?

Yes, the GP cone crusher allows for hydraulic adjustment of the cone gap during operation, enabling real-time control over output size.

3What types of materials can it handle?

It is suitable for medium to hard materials, such as basalt, granite, and quartz.

4How does its energy consumption compare to other cone crushers?

The GP single-cylinder hydraulic cone crusher is designed for energy efficiency, consuming less power while maintaining high productivity.

5What maintenance is required for the hydraulic system?

Regular oil changes and inspections of hydraulic components are recommended to ensure smooth operation and extend the equipment’s lifespan.
