2025年2月18日2 - 250 t/h
Capacity
2 mm
Min. Output Size
150 mm
Max. Input Size
Highlights
High Crushing Efficiency
The double roller design enables efficient crushing suitable for materials of various hardness, with a large crushing ratio and strong processing capacity.
Environmental Design
Good sealing performance reduces dust pollution, and low-noise operation meets environmental standards.
Easy Maintenance
The reasonable structural design facilitates easy maintenance and part replacement, minimizing downtime and improving production efficiency.
Stable and Reliable
Robust and durable structural components ensure stable operation, low failure rate, and long-term reliable performance.
Working Principle
1
Feed Material Intake
The material is fed into the crusher through a hopper or directly onto the crushing rolls.
2
Roll Rotation
Two heavy-duty rolls rotate in opposite directions, creating a shearing and compressing force on the material.
3
Compression and Crushing
As the material passes between the rolls, it undergoes compression and impact, breaking into smaller particles.
4
Adjustable Gap Setting
The distance between the two rolls can be adjusted to control the final product size, ensuring precise output.
5
Material Ejection
After being crushed, the material is ejected through a discharge opening or chute for further processing.
6
Wear-Resistant Components
The rolls are made of high-quality, wear-resistant materials to ensure long service life and minimal maintenance.

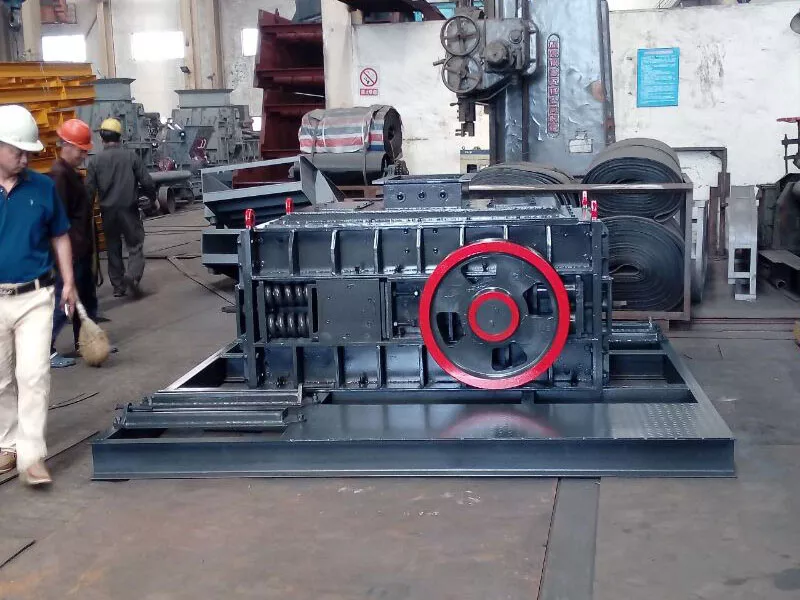

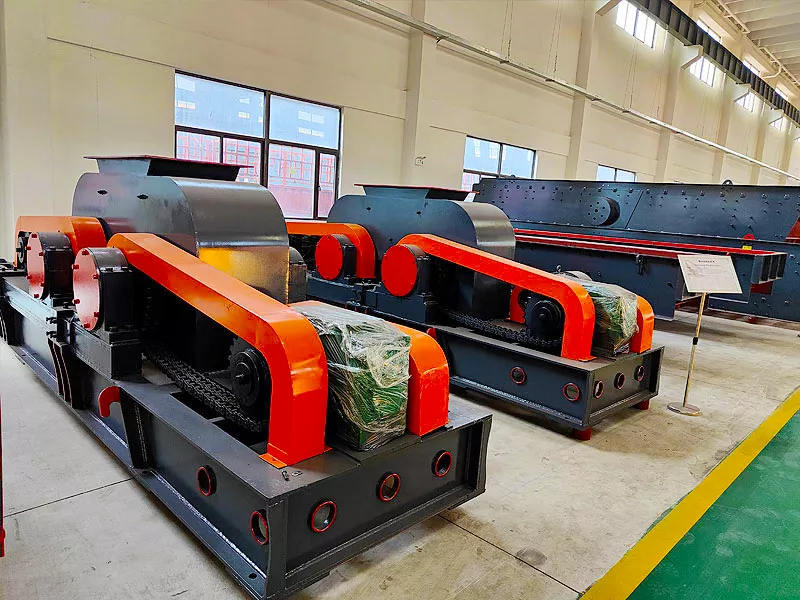

Gallery
Technical Specs
| Model | Roller Diameter (mm) | Roller Width (mm) | Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Feed Opening Size (mm) | Motor Power (kw) | External Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2PG400 | 400 | 252 | <30 | 45724 | 45721 | 100 x 200 | 5.5 x 2 | 1850 x 1100 x 800 | 1300 |
| 2PG600 | 600 | 400 | <40 | 45724 | 45797 | 370 x 400 | 11 x 2 | 2555 x 2490 x 1050 | 4300 |
| 2PG800 | 800 | 600 | <60 | 45726 | 15-40 | 600 x 500 | 22 x 2 | 3490 x 2884 x 1035 | 8500 |
| 2PG1000 | 1000 | 700 | <80 | 45728 | 20-50 | 700 x 600 | 30 x 2 | 4398 x 3354 x 1190 | 12000 |
| 2PG1200 | 1200 | 750 | <90 | 45730 | 30-80 | 800 x 600 | 45 x 2 | 4547 x 3653 x 1478 | 17000 |
| 2PG1500 | 1500 | 800 | <100 | 45731 | 40-100 | 800 x 800 | 75 x 2 | 44832 x 4037 x 1765 | 27000 |
| 2PG1800 | 1800 | 800 | <130 | 45734 | 60-130 | 800 x 800 | 90 x 2 | 5645 x 3850 x 2092 | 30000 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What are the main advantages of a double roll crusher over other crushers?
The double roll crusher offers versatility, high efficiency, and precise control over output size. It is also easy to maintain and suitable for processing a wide range of materials.
2How does the adjustable gap setting work in a double roll crusher?
The gap between the two rolls can be adjusted by moving one or both rolls closer together or farther apart, allowing you to control the size of the final crushed material.
3What types of materials is a double roll crusher best suited for?
It is ideal for crushing soft to medium-hard materials like coal, limestone, gypsum, and ores.
4How often does a double roll crusher require maintenance?
Maintenance frequency depends on the workload and material being processed. Regularly inspecting and replacing worn parts (e.g., rolls or liners) ensures long-term performance.
