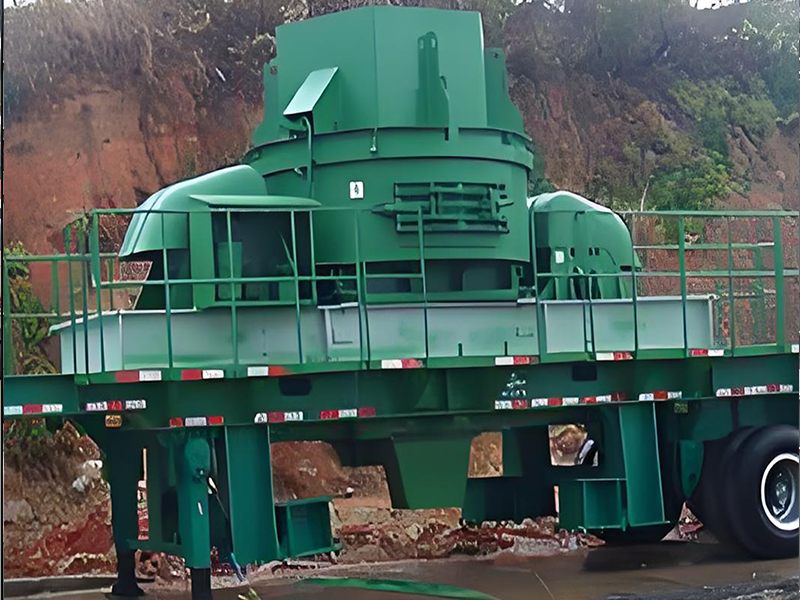

DBMV Portable VSI Crusher
2025年2月20日DBMF Portable Impact Crusher
2025年2月19日DBMV Portable VSI Crusher
2025年2月20日25 - 586 t/h
Capacity
450 mm
Max. Input Size
Highlights
High Performance
Equipped with advanced crushing technology, the DBMF Portable Cone Crusher delivers excellent productivity and efficiency.
Adjustable Gap Setting
Allows operators to fine-tune the crush size according to specific requirements.
Energy Efficiency
Designed with energy-saving features to reduce operational costs and environmental impact.
Mobility
Its compact design and user-friendly transportation system make it an ideal solution for on-site or temporary crushing operations.
Working Principle
1
Material Feeding
The raw material is fed into the crusher through a hopper or feeder system.
2
Primary Crushing
A large eccentrically rotating cone (mantle) presses against a stationary cone (bowl), crushing the material by impact and compression.
3
Adjustment of Gap
The gap between the cones can be adjusted to control the output size, ensuring precise particle sizing.
4
Screening and Recycling
Excess material that does not meet the desired size is returned to the crusher for further processing.
5
Discharge of Final Product
Material that meets the size requirements is discharged through a chute or conveyor system.
6
Portability

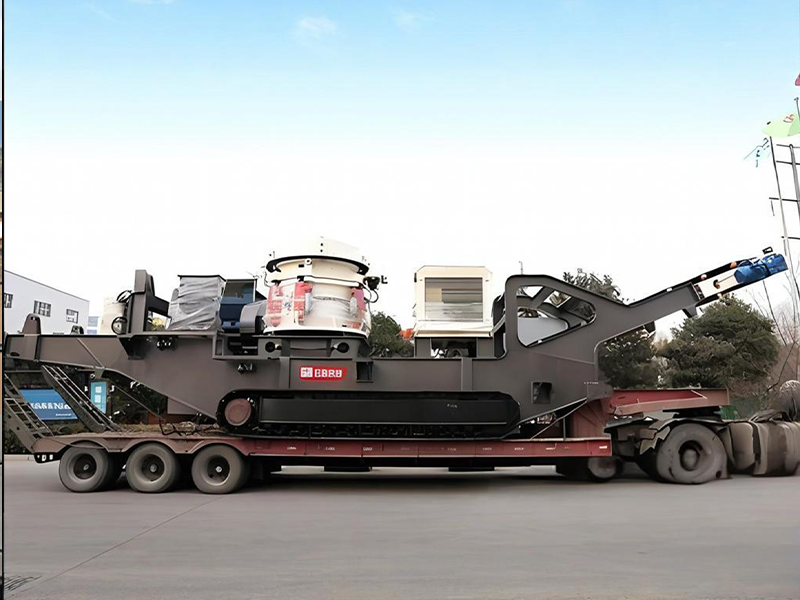

The DBMF Portable Cone Crusher can be easily moved from one location to another, thanks to its compact design and built-in transportation features.
Gallery
Technical Specs
| Model | Vibrating feeder | Cone crusher | Belt conveyor | Wheels | Generator | Capacity (t/h) | Power (kw) | Overall dimension(mm) | Weight (t) |
|---|---|---|---|---|---|---|---|---|---|
| 3YBY1590 | 3YZS1548 | PYB900 | B500*7m | Biaxial | Optional | 50-200 | 75 | 13000*2800*6400 | 43 |
| 3YBY1836 | 3YZS1548 | ZYS36 | B650*7m | Biaxial | Optional | 70-300 | 99-134 | 13000*3000*6400 | 47 |
| 3YBY1851 | 3YZS1860 | ZYS51 | B650*8m | Triaxial | Optional | 120-400 | 212.5-220.5 | 14000*3000*6700 | 53 |
| 3YBY2122 | 3YZS2160 | HP220 | B800*8m | Triaxial | Optional | 140-450 | 257.5-264.65 | 14000*3200*6700 | 58 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What materials can the DBMF Portable Cone Crusher handle?
It is suitable for hard rock, ore, construction debris, and other medium-hard materials.
2How does the gap adjustment work?
The gap between the cones can be adjusted manually or hydraulically to control the output size.
3What is the maximum feed size for the DBMF Portable Cone Crusher?
The maximum feed size typically ranges from 100 mm to 250 mm, depending on the model and application.
4How often does the crusher require maintenance?
Regular maintenance is recommended every 100 hours of operation or as per the manufacturer’s guidelines.
5Can the DBMF Portable Cone Crusher be used for recycling applications?
Yes, it is commonly used in recycling operations to crush concrete, asphalt, and other demolition waste materials.
