2025年2月19日50 - 845 t/h
Capacity
1200 mm
Max. Input Size
Highlights
High Crushing Efficiency
The advanced design and robust construction ensure maximum material throughput with minimal energy consumption.
Adjustable Jaw Gap
Easy adjustment of the jaw gap allows for precise control over the final product size, catering to various application needs.
Portability and Versatility
Compact design and easy mobility make it suitable for on-site processing in diverse environments.
Durable Construction
Built with high-quality materials, DBME Portable Jaw Crushers are designed to withstand heavy-duty operations and harsh conditions.
Working Principle
1
Feed Material Intake
The raw material is fed into the crusher through a hopper, which ensures a steady flow of material into the crushing chamber.
2
Jaw Plates Interaction
The primary jaw plate (fixed) and the secondary jaw plate (movable) work together to crush the material. The movable jaw moves back and forth, driven by a toggle mechanism.
3
Crushing Force Application
As the movable jaw closes toward the fixed jaw, immense force is applied to break the material into smaller particles.
4
Material Discharge
Once crushed, the material falls through the gap between the two jaws (known as the “closed side”) and exits the crusher.
5
Adjustment Mechanism
The gap between the fixed and movable jaws can be adjusted to control the final product size, ensuring flexibility in output requirements.
6
Lubrication System
A lubrication system ensures smooth operation of the moving parts, reducing wear and tear and prolonging the machine’s lifespan.

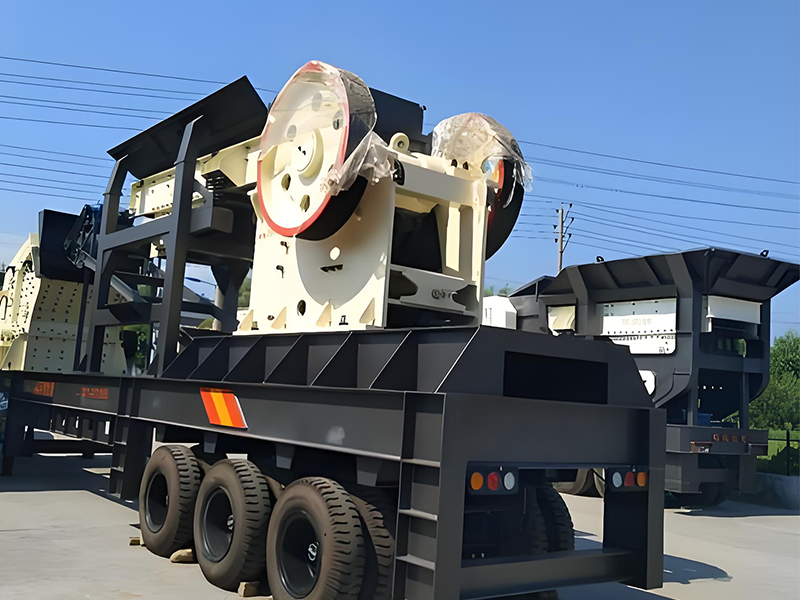

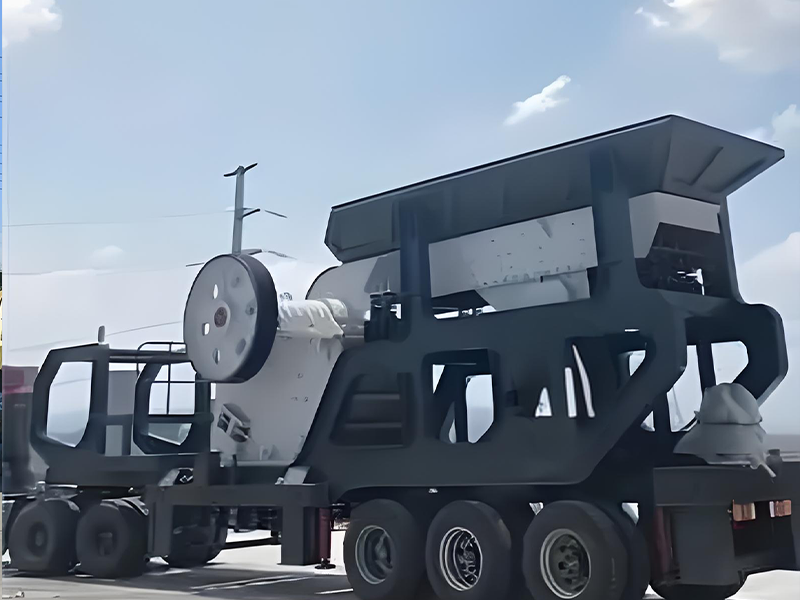

Gallery
Technical Specs
| Model | YG0830E4060 | YG0830E5075 | YG9538E6090 | YG1149E75110 | YG1249E86110 |
|---|---|---|---|---|---|
| Vibrating feeder | GZD0830 | GZD0830 | GZD9538 | GZD1149 | GZD1149 |
| Crusher | PEV400×600 | PEV500×750 | PEV600×900 | PEV750×1100 | PEV860×110 |
| Iron remover (Option) | RCYD(C)-5 | RCYD©-6.5 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 |
| Tire configuration | Equipped with dual axes | Equipped with dual axes | Equipped with dual axes | Equipped with three axes | Equipped with three axes |
| Main belt conveyor | B500×8.5m | B650×8.5m | B800×8.5m | V1000×10m | B1200×10m |
| Main belt conveyor discharge height ( mm ) | 3000 | 3000 | 3000 | 3200 | 3200 |
| Side exit belt conveyor (Option) | B500×4m | B650×4m | B500×4m | B650×5m | B650×5m |
| Side discharge belt conveyor discharge height ( mm ) | 2800 | 2800 | 2800 | 3100 | 3100 |
| Motor Power ( kw ) (Option) | 80 | 120 | 160 | 200 | 250 |
| Transport length ( mm ) | 9700 | 10500 | 11900 | 13100 | 14600 |
| Transport width ( mm ) | 2550 | 2550 | 2550 | 2550 | 2550 |
| Transport height ( mm ) | 3650 | 3800 | 4000 | 4300 | 4500 |
| Working length ( mm ) | 9700 | 10500 | 11900 | 13100 | 14600 |
| Working width ( mm ) | 2550 | 2550 | 2900 | 2950 | 3300 |
| Working height ( mm ) | 4060 | 4200 | 4400 | 4810 | 5300 |
| Weight (t) | 17 | 28 | 39 | 57 | 65 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What is the maximum feed size for the crusher?
The maximum feed size depends on the specific model of the DBME Portable Jaw Crusher, but it generally ranges between 200-600 mm (7.87-23.62 inches), ensuring optimal performance with materials up to that size.
2How do I ensure proper lubrication?
Regularly check and replenish the lubricating oil as recommended in the user manual. Typically, lubrication is required after every 50 hours of operation or more frequently if operating under harsh conditions.
3Can I adjust the jaw gap while the machine is running?
No, it is not safe to adjust the jaw gap while the crusher is operational. Always shut down the machine and follow safety protocols before making any adjustments.
4What are the common causes of noise during operation?
Noise can be caused by worn-out parts (e.g., jaw plates or bearings), improper lubrication, or material buildup inside the crusher. Regular maintenance and inspections can help reduce noise levels.
5How often should I replace the jaw plates?
Jaw plate replacement frequency depends on the material being crushed and the workload. Typically, it ranges from every 10,000 to 20,000 hours of operation, depending on conditions.
6What steps can I take to improve productivity?
To maximize productivity, ensure proper feed size distribution, maintain regular lubrication, adjust the jaw gap appropriately for your material type, and perform routine maintenance checks.
