2025年2月14日150 - 2000 t/h
Capacity
400 - 1300 mm
Max feed size
Highlights
High Efficiency and Energy Saving
The CI5X Impact Crusher is designed with advanced technology to ensure high efficiency while significantly reducing energy consumption, making it cost-effective for long-term operations.
Simple Maintenance and High Production
The CI5X Impact Crusher is engineered for easy maintenance, reducing downtime, and delivering high production rates to meet demanding industrial requirements.
Intelligent Control System
Equipped with a state-of-the-art control system, the crusher ensures precise operation, enhanced safety features, and optimized performance for various material crushing tasks.
Robust Structure and Durability
Constructed with premium materials, the CI5X offers exceptional durability and can handle tough mining and construction applications with ease.
Working Principle
1
Feeding Material
The raw material is fed into the crusher through a feeder, which ensures a steady flow of material into the crushing chamber.
2
Impact Force
As the material enters the chamber, it encounters high-speed rotating hammers or bars that strike the material with significant force, breaking it into smaller pieces.
3
Rebound Mechanism
The broken material is thrown against a stationary plate (impactor) or rebounded back into the chamber by the rotating parts, further crushing the particles.
4
Screening and Separation
A built-in screen or breaker bars separates the crushed material based on size, allowing the desired product to pass while larger pieces remain for additional processing.
5
Repeat Impact
Larger particles that do not meet the required size are thrown back into the chamber by the rebound mechanism, ensuring multiple impacts until the material reaches the desired granularity.
6
Product Discharge
The crushed material of the correct size is discharged from the machine, providing a consistent and high-quality output.

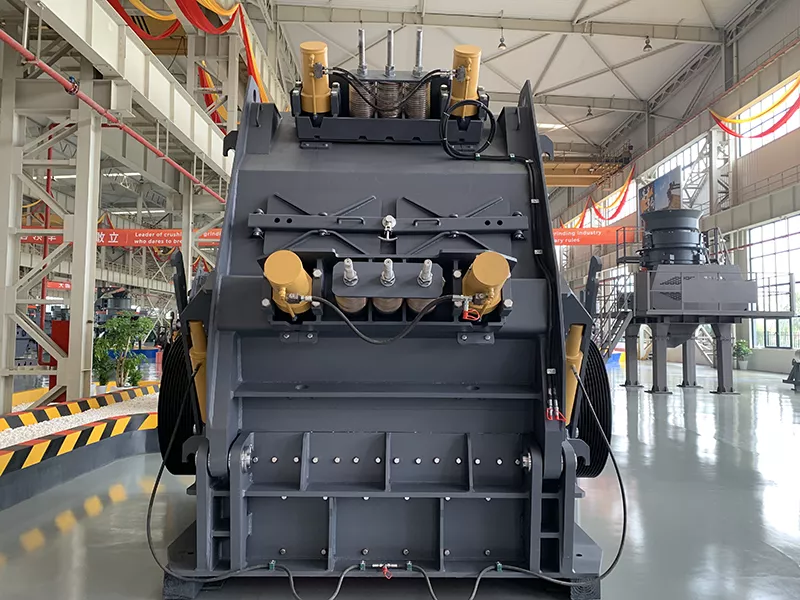

Gallery
Technical Specs
| Model | Specifications(mm) | Feed opening(mm) | Max feed size(mm) | Capacity(t/h) | Power(kw) | |
|---|---|---|---|---|---|---|
| CI5X1110 | 1100×1000 | 1020×820 | 500 | 150-200 | 160-200 | |
| CI5X1213 | 1200×1300 | 1320×880 | 550 | 200-300 | 200-250 | |
| CI5X1315 | 1300×1500 | 1540×930 | 600 | 250-350 | 250-315 | |
| CI5X1520 | 1500×2000 | 2040×995 | 400 | 400-600 | 400-500 | |
| CI5X1524 | 1500×2400 | 2516×767 | 400 | 500-700 | 560-630 | |
| CI5X1630 | 1600×2700 | 2740×787 | 400 | 600-900 | 710-800 | |
| CI5X1313 | 1300×1300 | 1320×1225 | 800 | 300-450 | 200-250 | |
| CI5X1415 | 1400×1500 | 1540×1320 | 900 | 350-550 | 250-315 | |
| CI5X1620 | 1600×2000 | 2040×1630 | 1100 | 500-900 | 400-500 | |
| CI5X2023 | 2000×2300 | 2310×1990 | 1300 | 1200-2000 | 1000-1260 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What is the main purpose of the CI5X Impact Crusher?
The CI5X Impact Crusher is designed for medium to fine material crushing, ideal for processing materials like limestone, coal gangue, construction waste, and more. It is widely used in mining, construction, and recycling industries.
2What are the key features of the CI5X Impact Crusher?
Compact design
High performance with adjustable impact plates for precise output control
Robust build for durability and low maintenance requirements
3How can I adjust the output size of the crusher?
The output size is controlled by adjusting the gap between the rotor and the impact plate. This allows operators to fine-tune the product size according to specific needs.
4What materials is the CI5X Impact Crusher suitable for?
Limestone
Coal gangue
Construction waste
Other medium-hard materials
5Limestone Coal gangue Construction waste Other medium-hard materials
Common causes include:
Incorrect material properties (e.g., too hard or sticky)
Improper adjustment of the impact plates
Lack of regular maintenance
Overloading the machine
Ensure proper material selection, correct setup, and routine maintenance for optimal performance.
