2025年2月11日175 - 1590 t/h
Capacity
1200 mm
Max. Feeding Size
Highlights
High Efficiency and Productivity
The C6X jaw crusher is engineered with advanced technology to deliver exceptional crushing performance, ensuring high output capacities even under demanding conditions. Its optimized design minimizes material retention time, maximizing productivity.
Intelligent Control System
Equipped with a state-of-the-art control system, the C6X enables real-time monitoring and adjustment of operations. This enhances efficiency, reduces downtime, and ensures precise control over the crushing process for superior results.
Robust and Durable Construction
Built to withstand heavy-duty applications, the C6X features a rugged construction with high-quality materials.Its reliable structure guarantees long service life and consistent performance, even when handling tough materials like hard rock or recycled aggregates.
Energy Efficiency and Sustainability
Designed with sustainability in mind, the C6X jaw crusher operates with low energy consumption while maintaining high productivity. This makes it an environmentally friendly choice for businesses aiming to reduce their carbon footprint.
Working Principle
1
Material Intake and Feeding
The C6X jaw crusher starts with material being fed into the machine through a hopper or feeder system. This ensures a controlled flow of material into the crushing chamber, optimizing efficiency and preventing overloading.
2
Jaw Plate Motion
The core of the C6X's operation lies in its dual toggle mechanism, which drives the movable jaw plate back and forth. This motion creates a squeezing action that crushes the material against the stationary jaw plate.
3
Crushing Chamber Geometry
The unique design of the crushing chamber in the C6X ensures uniform material flow and maximum contact between the jaw plates. This geometry allows for efficient size reduction, even when processing hard or abrasive materials.
4
Material Discharge
After being crushed to the desired size, the material is discharged through a regulated opening (discharge gap). The size of this gap can be adjusted to control the final product's specifications.
5
Adjustment and Regulation
The C6X jaw crusher features an easy-to-access adjustment system that allows operators to fine-tune the discharge gap. This ensures consistent output sizes and adapts the machine to different material requirements.
6
Lubrication and Maintenance
To ensure smooth operation, the C6X incorporates advanced lubrication systems that protect moving parts from wear and tear. Regular maintenance checks are recommended to maintain optimal performance and extend the equipment's lifespan.

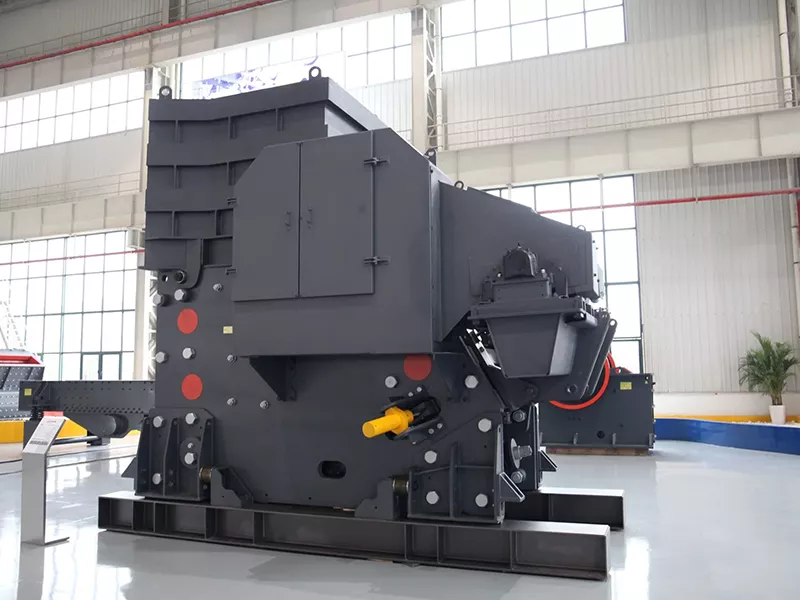

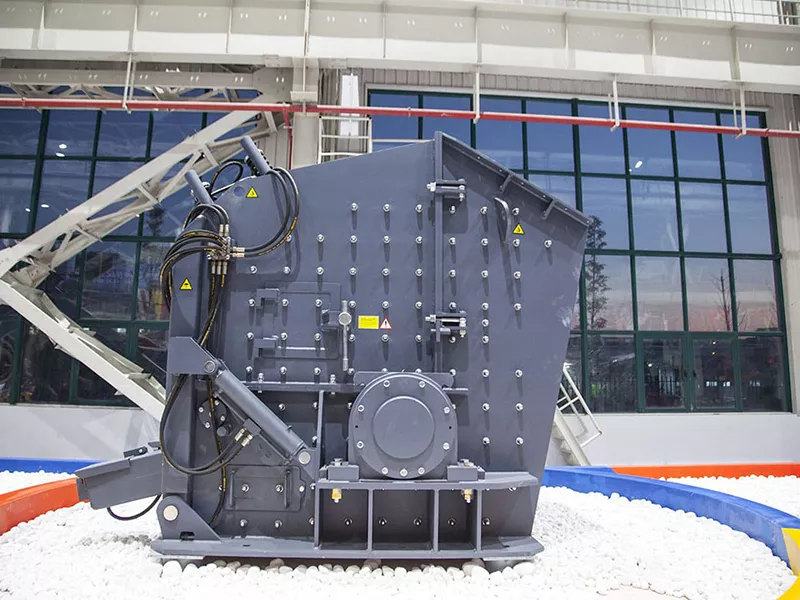

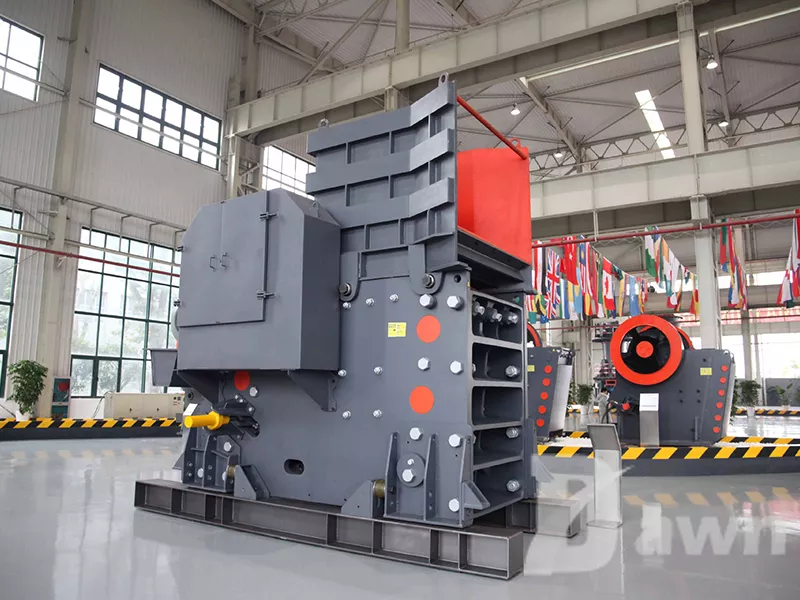

Gallery
Technical Specs
| Model | Feed opening size(mm) | Max Input size(mm) | Outlet Adjustment Range(mm) | Processing Capacity(t/h) | Speed(r/min) | Power(kw) | Dimension(mm) |
|---|---|---|---|---|---|---|---|
| C6X80 | 520×800 | 420 | 60-150 | 80-290 | 350 | 75 | 2650×1540×1780 |
| C6X100 | 760×1000 | 630 | 70-175 | 130-420 | 260 | 110 | 3700×2440×2520 |
| C6X110 | 850×1100 | 720 | 80-200 | 160-550 | 230 | 160 | 3800×2450×2550 |
| C6X125 | 950×1250 | 800 | 100-250 | 230-760 | 220 | 160 | 4100×2750×2780 |
| C6X145 | 1100×1450 | 920 | 125-275 | 320-950 | 220 | 200 | 4400×3060×3210 |
| C6X160 | 1200×1600 | 1020 | 150-300 | 410-1150 | 220 | 250 | 5700×3650×3550 |
| C6X200 | 1500×2000 | 1200 | 175-300 | 610-1510 | 200 | 400 | 6500×3990×4260 |
FAQ
If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.
Job Position
Comments from Engineers
1What is the expected lifespan of the jaw plates on a C6X crusher?
The jaw plates on a C6X jaw crusher are designed to withstand heavy-duty operations, and their lifespan depends
on factors such as material type, feed size, and operating conditions. Regular maintenance and inspections can
help extend the life of the jaw plates.
2Can the discharge gap be adjusted while the machine is running?
No, it is not recommended to adjust the discharge gap while the C6X crusher is running. Always shut down the
machine and ensure it is properly locked out before making any adjustments or performing maintenance.
3What types of materials can the C6X jaw crusher handle effectively?
The C6X jaw crusher is capable of processing a wide range of materials, including hard rock, ores, construction
waste, and recycled aggregates. It performs particularly well with medium to high-hardness materials.
4How often does the C6X require maintenance?
Maintenance frequency depends on the operating hours and conditions. Regular checks, lubrication, and
inspections are recommended to ensure optimal performance. A detailed maintenance schedule is provided in the
operator manual.
5Why is there noise during operation?
If the C6X jaw crusher becomes stuck or jammed, immediately stop the machine and check for obstructions in the
feed or discharge areas. Clear any blockages manually, and ensure that all components are properly aligned before
restarting.
